Step1: Product
Cinch Connectivity Solutions Johnson 127-0701-631

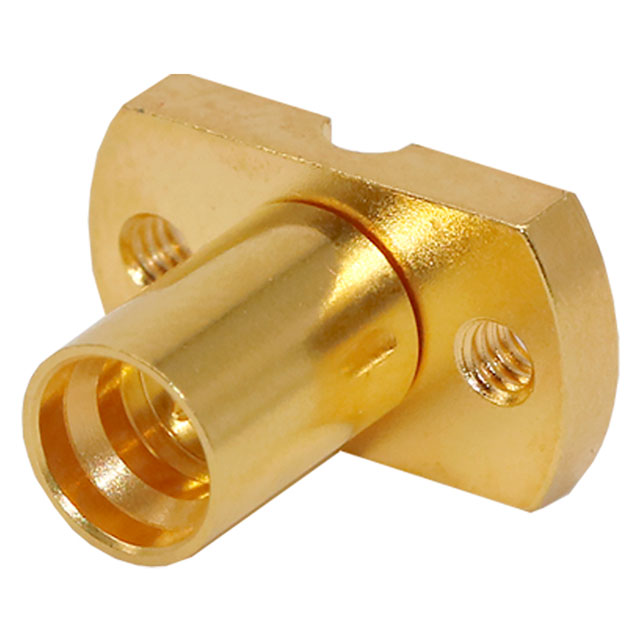

Image shown is a representation only
Manufacturer
Manufacturer No
127-0701-631
Packaging
Bag
Description
SMP COMPRESSION CONNECTOR, MICRO
Detailed Description
SMP Connector Jack, Male Pin 50 Ohms Surface Mount
DataSheet
Mfr
Cinch Connectivity Solutions Johnson
Features
Full Detent
Impedance
50 Ohms
Packaging
Bag
Body Finish
Gold
Part Status
Active
Body Material
Beryllium Copper, Brass
Housing Color
Gold
Mating Cycles
100
Mounting Type
Surface Mount
Connector Type
Jack, Male Pin
Fastening Type
Snap-On
Voltage Rating
335 V
Connector Style
SMP
Frequency - Max
40 GHz
Number of Ports
1
Mounting Feature
Flange
Shield Termination
Compression
Base Product Number
127-0701
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Cinch Connectivity Solutions Johnson |
| Features | Full Detent |
| Impedance | 50 Ohms |
| Packaging | Bag |
| Body Finish | Gold |
| Part Status | Active |
| Body Material | Beryllium Copper, Brass |
| Housing Color | Gold |
| Mating Cycles | 100 |
| Mounting Type | Surface Mount |
| Connector Type | Jack, Male Pin |
| Fastening Type | Snap-On |
| Voltage Rating | 335 V |
| Connector Style | SMP |
| Frequency - Max | 40 GHz |
| Number of Ports | 1 |
| Mounting Feature | Flange |
| Shield Termination | Compression |
| Base Product Number | 127-0701 |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
