Step1: Product

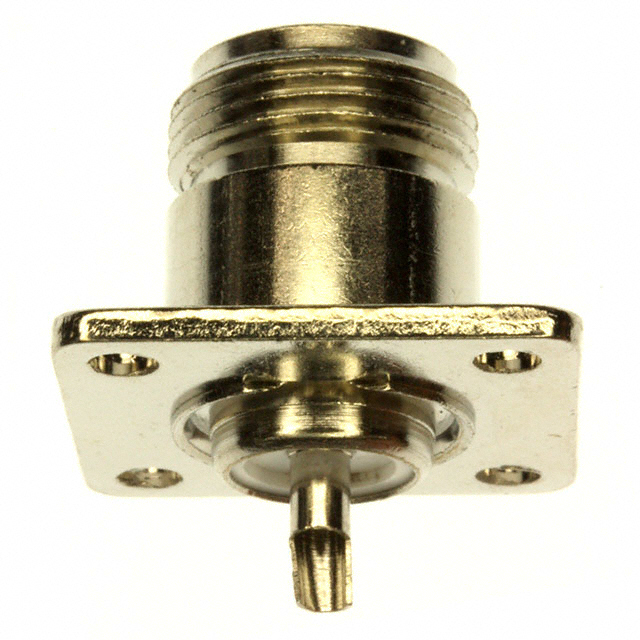

Cinch Connectivity Solutions AIM-Cambridge 26-8011
Image shown is a representation only
Manufacturer
Manufacturer No
26-8011
Packaging
Bulk
Description
CONN N JACK STR 50 OHM SOLDER
Detailed Description
N Type Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
DataSheet
Mfr
Cinch Connectivity Solutions AIM-Cambridge
Impedance
50 Ohms
Packaging
Bulk
Body Finish
Nickel
Part Status
Active
Body Material
Brass
Housing Color
Silver
Mounting Type
Panel Mount
Connector Type
Jack, Female Socket
Fastening Type
Threaded
Voltage Rating
500 V
Connector Style
N Type
Frequency - Max
4 GHz
Number of Ports
1
Mounting Feature
Flange
Shield Termination
Solder
Contact Termination
Solder Cup
Dielectric Material
Polyoxymethylene (POM) Acetal
Operating Temperature
-55°C ~ 85°C
Center Contact Plating
Nickel
Center Contact Material
Brass
| Attribute | Value |
|---|---|
| Mfr | Cinch Connectivity Solutions AIM-Cambridge |
| Impedance | 50 Ohms |
| Packaging | Bulk |
| Body Finish | Nickel |
| Part Status | Active |
| Body Material | Brass |
| Housing Color | Silver |
| Mounting Type | Panel Mount |
| Connector Type | Jack, Female Socket |
| Fastening Type | Threaded |
| Voltage Rating | 500 V |
| Connector Style | N Type |
| Frequency - Max | 4 GHz |
| Number of Ports | 1 |
| Mounting Feature | Flange |
| Shield Termination | Solder |
| Contact Termination | Solder Cup |
| Dielectric Material | Polyoxymethylene (POM) Acetal |
| Operating Temperature | -55°C ~ 85°C |
| Center Contact Plating | Nickel |
| Center Contact Material | Brass |
