Step1: Product
Cinch Connectivity Solutions AIM-Cambridge MINI-UHF-16

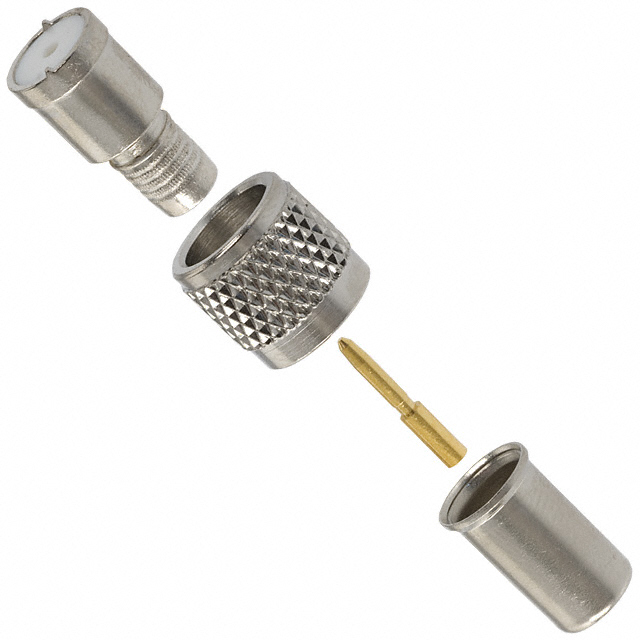

Image shown is a representation only
Manufacturer
Manufacturer No
MINI-UHF-16
Packaging
Bulk
Description
CONN MINI UHF PLUG STR CRIMP
Detailed Description
UHF, Mini Connector Plug, Male Pin Non-Constant Free Hanging (In-Line) Crimp or Solder
DataSheet
Mfr
Cinch Connectivity Solutions AIM-Cambridge
Includes
4 pcs - 1 Connector, 1 Contact, 1 Coupling Nut, 1 Sleeve
Impedance
Non-Constant
Packaging
Bulk
Body Finish
Nickel
Cable Group
RG-450 Proflex
Part Status
Obsolete
Housing Color
Silver
Mating Cycles
500
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Male Pin
Fastening Type
Threaded
Voltage Rating
500 V
Connector Style
UHF, Mini
Frequency - Max
2 GHz
Number of Ports
1
Shield Termination
Crimp
Base Product Number
MINI-UHF
Contact Termination
Crimp or Solder
Dielectric Material
Polymethylpentene (PMP)
Operating Temperature
-55°C ~ 85°C
Center Contact Plating
Gold
Center Contact Material
Brass
| Attribute | Value |
|---|---|
| Mfr | Cinch Connectivity Solutions AIM-Cambridge |
| Includes | 4 pcs - 1 Connector, 1 Contact, 1 Coupling Nut, 1 Sleeve |
| Impedance | Non-Constant |
| Packaging | Bulk |
| Body Finish | Nickel |
| Cable Group | RG-450 Proflex |
| Part Status | Obsolete |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pin |
| Fastening Type | Threaded |
| Voltage Rating | 500 V |
| Connector Style | UHF, Mini |
| Frequency - Max | 2 GHz |
| Number of Ports | 1 |
| Shield Termination | Crimp |
| Base Product Number | MINI-UHF |
| Contact Termination | Crimp or Solder |
| Dielectric Material | Polymethylpentene (PMP) |
| Operating Temperature | -55°C ~ 85°C |
| Center Contact Plating | Gold |
| Center Contact Material | Brass |
