Step1: Product
Cinch Connectivity Solutions AIM-Cambridge 25-7630

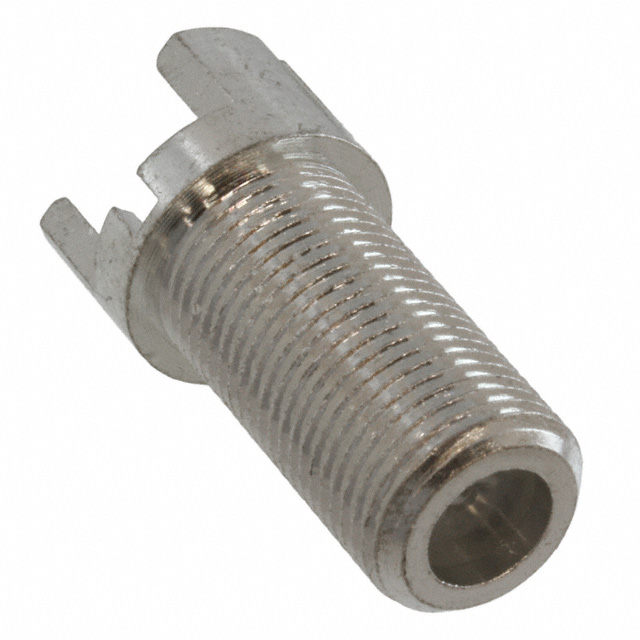

Image shown is a representation only
Manufacturer
Manufacturer No
25-7630
Packaging
Bulk
Description
CONN F JACK STR 75 OHM EDGE MNT
Detailed Description
F Type Connector Jack, Female Socket 75 Ohms Board Edge, End Launch Solder
Datasheet
Mfr
Cinch Connectivity Solutions AIM-Cambridge
Impedance
75 Ohms
Packaging
Bulk
Body Finish
Tin
Body Material
Brass
Housing Color
Silver
Mounting Type
Board Edge, End Launch
Connector Type
Jack, Female Socket
Fastening Type
Threaded
Connector Style
F Type
Frequency - Max
1 GHz
Number of Ports
1
Shield Termination
Solder
Contact Termination
Solder
Dielectric Material
Polypropylene (PP)
Center Contact Plating
Tin
Center Contact Material
Phosphor Bronze
| Attribute | Value |
|---|---|
| Mfr | Cinch Connectivity Solutions AIM-Cambridge |
| Impedance | 75 Ohms |
| Packaging | Bulk |
| Body Finish | Tin |
| Body Material | Brass |
| Housing Color | Silver |
| Mounting Type | Board Edge, End Launch |
| Connector Type | Jack, Female Socket |
| Fastening Type | Threaded |
| Connector Style | F Type |
| Frequency - Max | 1 GHz |
| Number of Ports | 1 |
| Shield Termination | Solder |
| Contact Termination | Solder |
| Dielectric Material | Polypropylene (PP) |
| Center Contact Plating | Tin |
| Center Contact Material | Phosphor Bronze |
