Step1: Product
Cinch Connectivity Solutions AIM-Cambridge 25-7350

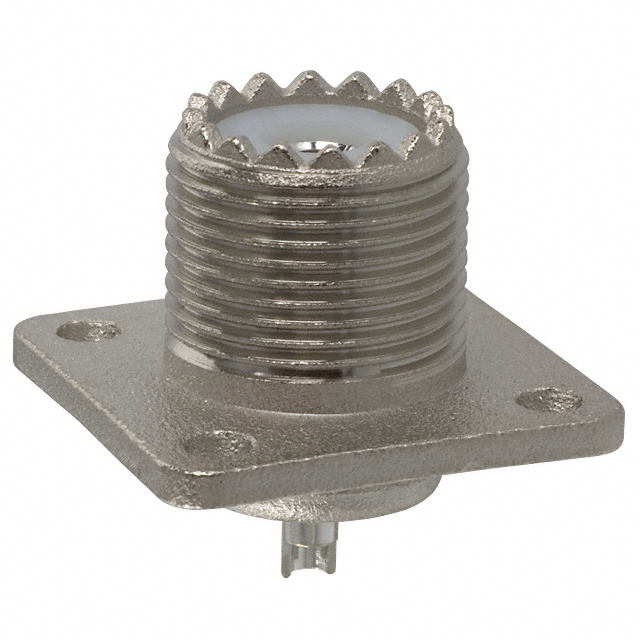

Image shown is a representation only
Manufacturer
Manufacturer No
25-7350
Packaging
Bulk
Description
CONN UHF JACK STR SOLDER
Detailed Description
UHF Connector Jack, Female Socket Non-Constant Panel Mount Solder Cup
DataSheet
Mfr
Cinch Connectivity Solutions AIM-Cambridge
Impedance
Non-Constant
Packaging
Bulk
Body Finish
Nickel
Part Status
Active
Body Material
Zinc
Housing Color
Silver
Mating Cycles
500
Mounting Type
Panel Mount
Connector Type
Jack, Female Socket
Fastening Type
Threaded
Voltage Rating
500 V
Connector Style
UHF
Frequency - Max
500 MHz
Number of Ports
1
Mounting Feature
Flange
Shield Termination
Solder
Contact Termination
Solder Cup
Dielectric Material
Polyoxymethylene (POM) Acetal
Operating Temperature
-55°C ~ 85°C
Center Contact Plating
Nickel
Center Contact Material
Bronze
| Attribute | Value |
|---|---|
| Mfr | Cinch Connectivity Solutions AIM-Cambridge |
| Impedance | Non-Constant |
| Packaging | Bulk |
| Body Finish | Nickel |
| Part Status | Active |
| Body Material | Zinc |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Mounting Type | Panel Mount |
| Connector Type | Jack, Female Socket |
| Fastening Type | Threaded |
| Voltage Rating | 500 V |
| Connector Style | UHF |
| Frequency - Max | 500 MHz |
| Number of Ports | 1 |
| Mounting Feature | Flange |
| Shield Termination | Solder |
| Contact Termination | Solder Cup |
| Dielectric Material | Polyoxymethylene (POM) Acetal |
| Operating Temperature | -55°C ~ 85°C |
| Center Contact Plating | Nickel |
| Center Contact Material | Bronze |
