Step1: Product
Chogori Technologies Inc. 22012331-01

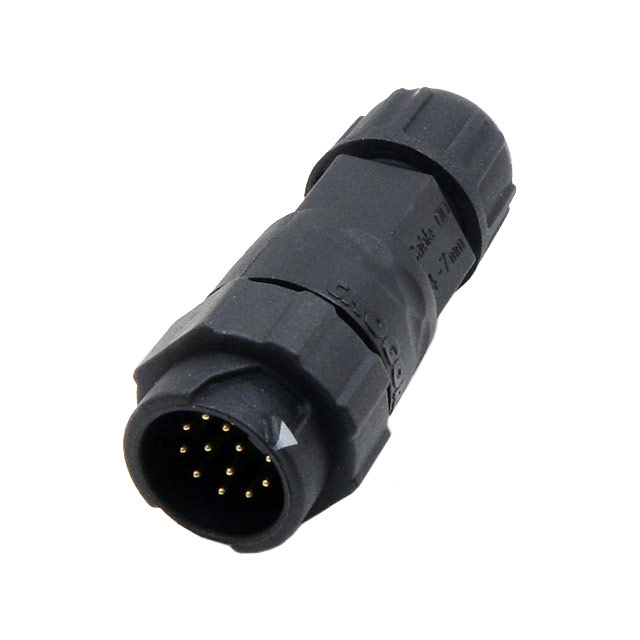

Image shown is a representation only
Manufacturer
Manufacturer No
22012331-01
Packaging
Bulk
Description
CONN RCPT MALE 12POS SOLDER CUP
Detailed Description
12 Position Circular Connector Receptacle, Male Pins Solder Cup
DataSheet
Mfr
Chogori Technologies Inc.
Color
Black
Series
Standard
Features
Backshell
Packaging
Bulk
Shielding
Unshielded
Orientation
Keyed
Part Status
Active
Termination
Solder Cup
Applications
Communication Systems, Industrial, Lighting, Marine
Cable Opening
0.138" ~ 0.268" (3.50mm ~ 6.80mm)
Mounting Type
Free Hanging (In-Line)
Connector Type
Receptacle, Male Pins
Fastening Type
Push-Twist
Shell Material
Polyamide (PA66), Nylon 6/6
Voltage Rating
30V
Insert Material
Polyamide (PA66), Nylon 6/6
Contact Material
Brass, Phosphor Bronze
Primary Material
Plastic
Ingress Protection
IP67 - Dust Tight, Waterproof
Number of Positions
12
Current Rating (Amps)
2A
Operating Temperature
-45°C ~ 105°C
Contact Finish - Mating
Gold
Backshell Material, Plating
Polyamide (PA66), Nylon 6/6
| Attribute | Value |
|---|---|
| Mfr | Chogori Technologies Inc. |
| Color | Black |
| Series | Standard |
| Features | Backshell |
| Packaging | Bulk |
| Shielding | Unshielded |
| Orientation | Keyed |
| Part Status | Active |
| Termination | Solder Cup |
| Applications | Communication Systems, Industrial, Lighting, Marine |
| Cable Opening | 0.138" ~ 0.268" (3.50mm ~ 6.80mm) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle, Male Pins |
| Fastening Type | Push-Twist |
| Shell Material | Polyamide (PA66), Nylon 6/6 |
| Voltage Rating | 30V |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Contact Material | Brass, Phosphor Bronze |
| Primary Material | Plastic |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Number of Positions | 12 |
| Current Rating (Amps) | 2A |
| Operating Temperature | -45°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | Polyamide (PA66), Nylon 6/6 |
