Step1: Product

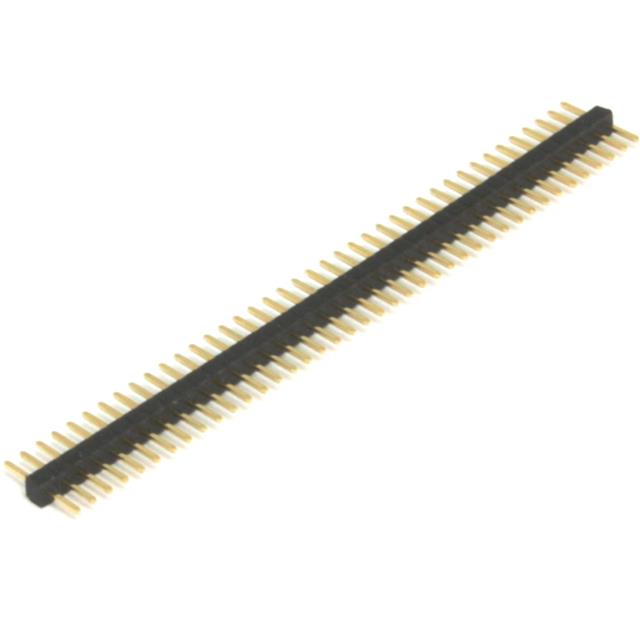

Chip Quik Inc. HDR100MET40M-G-V-TH
Image shown is a representation only
Manufacturer
Manufacturer No
HDR100MET40M-G-V-TH
Packaging
Bulk
Description
1.00 MM 40 PIN VERTICAL MALE HEA
Detailed Description
Connector Header Through Hole 40 position 0.039" (1.00mm)
DataSheet
Mfr
Chip Quik Inc.
Style
Board to Board
Series
Proto-Advantage
Packaging
Bulk
Shrouding
Unshrouded
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header, Cuttable
Fastening Type
Push-Pull
Number of Rows
1
Pitch - Mating
0.039" (1.00mm)
Contact Material
Brass
Insulation Color
Black
Insulation Height
0.039" (1.00mm)
Insulation Material
Polyamide (PA6T), Nylon 6T
Number of Positions
40
Contact Finish - Post
Gold
Contact Length - Post
0.079" (2.00mm)
Operating Temperature
-40°C ~ 130°C
Overall Contact Length
0.197" (5.00mm)
Contact Finish - Mating
Gold
Contact Length - Mating
0.079" (2.00mm)
Number of Positions Loaded
All
Contact Finish Thickness - Post
39.4µin (1.00µm)
Contact Finish Thickness - Mating
39.4µin (1.00µm)
| Attribute | Value |
|---|---|
| Mfr | Chip Quik Inc. |
| Style | Board to Board |
| Series | Proto-Advantage |
| Packaging | Bulk |
| Shrouding | Unshrouded |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header, Cuttable |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Pitch - Mating | 0.039" (1.00mm) |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | 0.039" (1.00mm) |
| Insulation Material | Polyamide (PA6T), Nylon 6T |
| Number of Positions | 40 |
| Contact Finish - Post | Gold |
| Contact Length - Post | 0.079" (2.00mm) |
| Operating Temperature | -40°C ~ 130°C |
| Overall Contact Length | 0.197" (5.00mm) |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.079" (2.00mm) |
| Number of Positions Loaded | All |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
