Chip Quik Inc. HDR100IMP40M-G-RA-TH

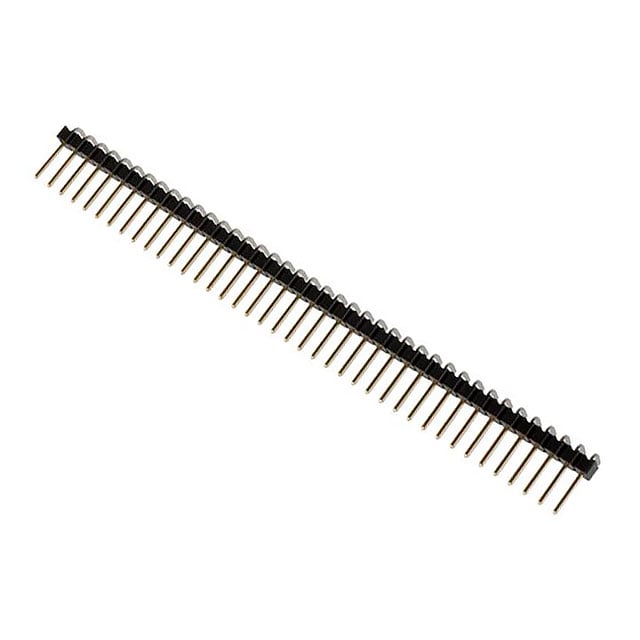

Image shown is a representation only
Manufacturer
Manufacturer No
HDR100IMP40M-G-RA-TH
Packaging
Bulk
Description
CONN HEADER R/A 40POS 2.54MM
Detailed Description
Connector Header Through Hole, Right Angle 40 position 0.100" (2.54mm)
DataSheet
Mfr
Chip Quik Inc.
Style
Board to Board
Series
Proto-Advantage
Packaging
Bulk
Shrouding
Unshrouded
Part Status
Active
Termination
Wire Wrap
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole, Right Angle
Connector Type
Header, Breakaway
Fastening Type
Push-Pull
Number of Rows
1
Pitch - Mating
0.100" (2.54mm)
Insulation Height
0.098" (2.50mm)
Base Product Number
HDR100
Number of Positions
40
Contact Finish - Post
Gold
Contact Length - Post
0.118" (3.00mm)
Contact Finish - Mating
Gold
Contact Length - Mating
0.236" (6.00mm)
Number of Positions Loaded
All
| Attribute | Value |
|---|---|
| Mfr | Chip Quik Inc. |
| Style | Board to Board |
| Series | Proto-Advantage |
| Packaging | Bulk |
| Shrouding | Unshrouded |
| Part Status | Active |
| Termination | Wire Wrap |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header, Breakaway |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Pitch - Mating | 0.100" (2.54mm) |
| Insulation Height | 0.098" (2.50mm) |
| Base Product Number | HDR100 |
| Number of Positions | 40 |
| Contact Finish - Post | Gold |
| Contact Length - Post | 0.118" (3.00mm) |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.236" (6.00mm) |
| Number of Positions Loaded | All |
