Step1: Product
CEL UPA806T-T1-A

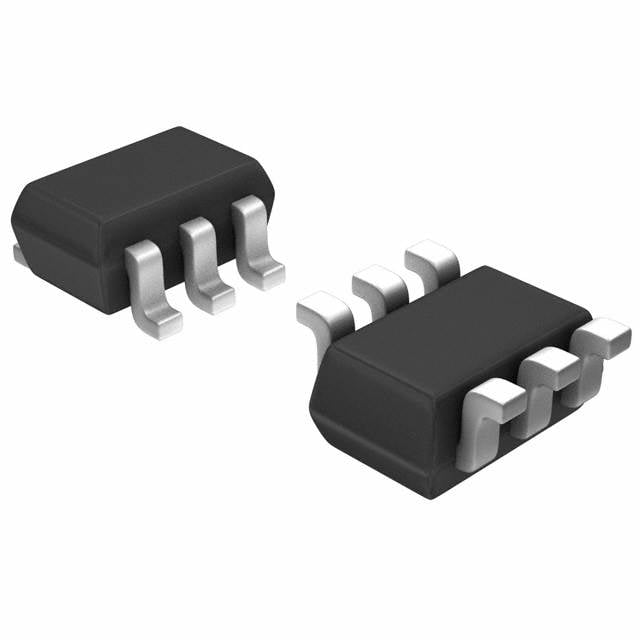

Image shown is a representation only
Manufacturer
Manufacturer No
UPA806T-T1-A
Package
6-TSSOP, SC-88, SOT-363
Packaging
Tape & Reel (TR)
Description
RF TRANS 2 NPN 6V 12GHZ 6-SUPER
Detailed Description
RF Transistor 2 NPN (Dual) 6V 30mA 12GHz 200mW Surface Mount 6-SuperMiniMold
DataSheet
Gain
8.5dB
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Power - Max
200mW
Manufacturer
CEL
Mounting Type
Surface Mount
Package / Case
6-TSSOP, SC-88, SOT-363
Transistor Type
2 NPN (Dual)
Operating Temperature
150°C (TJ)
Frequency - Transition
12GHz
Supplier Device Package
6-SuperMiniMold
Noise Figure (dB Typ @ f)
1.5dB @ 2GHz
Current - Collector (Ic) (Max)
30mA
DC Current Gain (hFE) (Min) @ Ic, Vce
75 @ 10mA, 3V
Voltage - Collector Emitter Breakdown (Max)
6V
| Attribute | Value |
|---|---|
| Gain | 8.5dB |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Power - Max | 200mW |
| Manufacturer | CEL |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Transistor Type | 2 NPN (Dual) |
| Operating Temperature | 150°C (TJ) |
| Frequency - Transition | 12GHz |
| Supplier Device Package | 6-SuperMiniMold |
| Noise Figure (dB Typ @ f) | 1.5dB @ 2GHz |
| Current - Collector (Ic) (Max) | 30mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 75 @ 10mA, 3V |
| Voltage - Collector Emitter Breakdown (Max) | 6V |
