Step1: Product

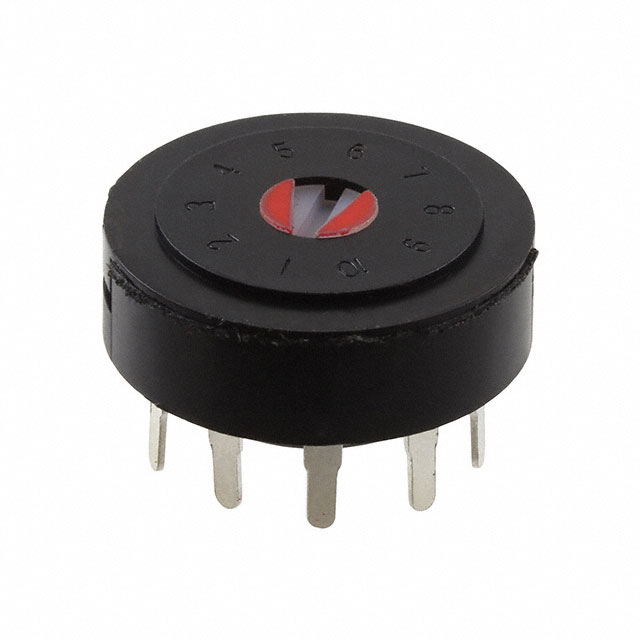

C&K R20515RS02QE
Image shown is a representation only
Manufacturer
Manufacturer No
R20515RS02QE
Packaging
Bag
Description
SWITCH ROTARY 5POS 5A 125V
Detailed Description
Rotary Switch 5 Position DP5T, Adjacent Contact 5A (AC), 500mA (DC) 125 VAC Through Hole
DataSheet
Series
R
Features
Epoxy Sealed Terminals
Packaging
Bag
Index Stops
Fixed
Part Status
Active
Manufacturer
C&K
Actuator Type
Screwdriver Slot
Mounting Type
Through Hole
Angle of Throw
36°
Contact Finish
Silver
Contact Timing
Non-Shorting (BBM)
Actuator Length
Flush
Number of Decks
1
Circuit per Deck
DP5T, Adjacent Contact
Contact Material
Copper
Termination Style
PC Pin
Depth Behind Panel
10.29mm
Base Product Number
R20515RS
Number of Positions
5
Voltage Rating - AC
125 V
Voltage Rating - DC
125 V
Current Rating (Amps)
5A (AC), 500mA (DC)
Number of Poles per Deck
2
| Attribute | Value |
|---|---|
| Series | R |
| Features | Epoxy Sealed Terminals |
| Packaging | Bag |
| Index Stops | Fixed |
| Part Status | Active |
| Manufacturer | C&K |
| Actuator Type | Screwdriver Slot |
| Mounting Type | Through Hole |
| Angle of Throw | 36° |
| Contact Finish | Silver |
| Contact Timing | Non-Shorting (BBM) |
| Actuator Length | Flush |
| Number of Decks | 1 |
| Circuit per Deck | DP5T, Adjacent Contact |
| Contact Material | Copper |
| Termination Style | PC Pin |
| Depth Behind Panel | 10.29mm |
| Base Product Number | R20515RS |
| Number of Positions | 5 |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 V |
| Current Rating (Amps) | 5A (AC), 500mA (DC) |
| Number of Poles per Deck | 2 |
