Step1: Product

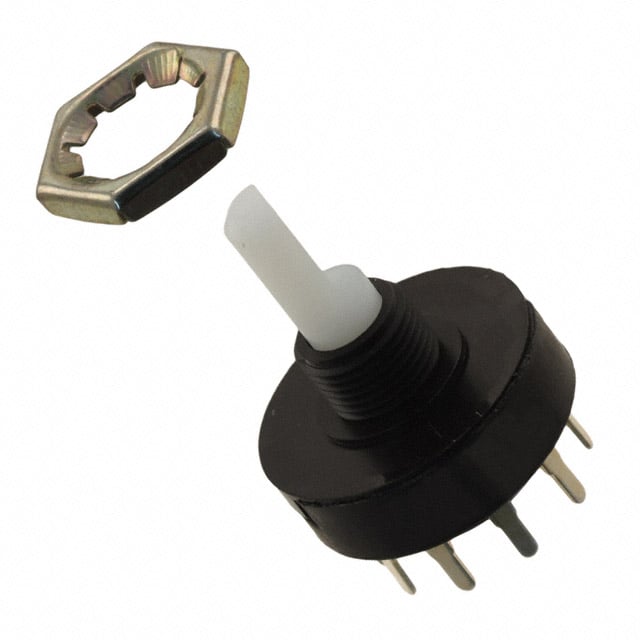

C&K R20407RR02Q
Image shown is a representation only
Manufacturer
Manufacturer No
R20407RR02Q
Quantity
51
Availability
In Stock
Packaging
Tube
Description
SWITCH ROTARY 4POS 5A 125V
Detailed Description
Rotary Switch 4 Position DP4T, Adjacent Contact 5A (AC), 500mA (DC) 125 VAC Panel Mount, Through Hole
Datasheet
Series
R
Packaging
Tube
Index Stops
Fixed
Manufacturer
C&K
Actuator Type
Flatted (6.35mm Dia)
Mounting Type
Panel Mount, Through Hole
Angle of Throw
36°
Contact Finish
Silver
Contact Timing
Non-Shorting (BBM)
Actuator Length
12.70mm
Number of Decks
1
Circuit per Deck
DP4T, Adjacent Contact
Contact Material
Copper
Termination Style
PC Pin
Depth Behind Panel
10.29mm
Base Product Number
R20407RR
Number of Positions
4
Voltage Rating - AC
125 V
Voltage Rating - DC
125 V
Current Rating (Amps)
5A (AC), 500mA (DC)
Panel Cutout Dimensions
Circular - 9.78mm Dia
Number of Poles per Deck
2
| Attribute | Value |
|---|---|
| Series | R |
| Packaging | Tube |
| Index Stops | Fixed |
| Manufacturer | C&K |
| Actuator Type | Flatted (6.35mm Dia) |
| Mounting Type | Panel Mount, Through Hole |
| Angle of Throw | 36° |
| Contact Finish | Silver |
| Contact Timing | Non-Shorting (BBM) |
| Actuator Length | 12.70mm |
| Number of Decks | 1 |
| Circuit per Deck | DP4T, Adjacent Contact |
| Contact Material | Copper |
| Termination Style | PC Pin |
| Depth Behind Panel | 10.29mm |
| Base Product Number | R20407RR |
| Number of Positions | 4 |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 V |
| Current Rating (Amps) | 5A (AC), 500mA (DC) |
| Panel Cutout Dimensions | Circular - 9.78mm Dia |
| Number of Poles per Deck | 2 |
