Step1: Product
C&K R10005RN03QE

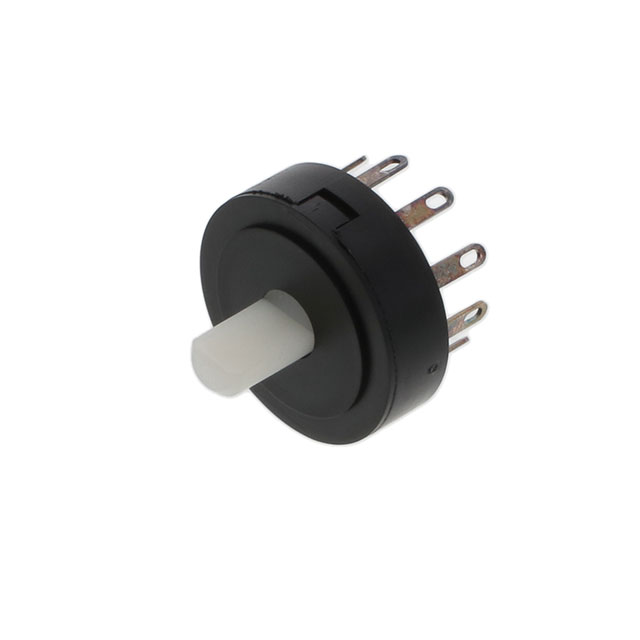

Image shown is a representation only
Manufacturer
Manufacturer No
R10005RN03QE
Packaging
Bag
Description
SWITCH ROTARY 10POS 5A 125V
Detailed Description
Rotary Switch 10 Position SP10T, Adjacent Contact 5A (AC), 500mA (DC) 125 VAC
DataSheet
Series
R
Features
Epoxy Sealed Terminals
Packaging
Bag
Index Stops
Continuous
Part Status
Active
Manufacturer
C&K
Actuator Type
Flatted (6.35mm Dia)
Angle of Throw
36°
Contact Finish
Silver
Contact Timing
Non-Shorting (BBM)
Actuator Length
9.53mm
Number of Decks
1
Circuit per Deck
SP10T, Adjacent Contact
Contact Material
Copper
Termination Style
Solder Lug
Base Product Number
R10005RN
Number of Positions
10
Voltage Rating - AC
125 V
Voltage Rating - DC
125 V
Current Rating (Amps)
5A (AC), 500mA (DC)
Number of Poles per Deck
1
| Attribute | Value |
|---|---|
| Series | R |
| Features | Epoxy Sealed Terminals |
| Packaging | Bag |
| Index Stops | Continuous |
| Part Status | Active |
| Manufacturer | C&K |
| Actuator Type | Flatted (6.35mm Dia) |
| Angle of Throw | 36° |
| Contact Finish | Silver |
| Contact Timing | Non-Shorting (BBM) |
| Actuator Length | 9.53mm |
| Number of Decks | 1 |
| Circuit per Deck | SP10T, Adjacent Contact |
| Contact Material | Copper |
| Termination Style | Solder Lug |
| Base Product Number | R10005RN |
| Number of Positions | 10 |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 V |
| Current Rating (Amps) | 5A (AC), 500mA (DC) |
| Number of Poles per Deck | 1 |
