Step1: Product
C&K MA04L1NZGF

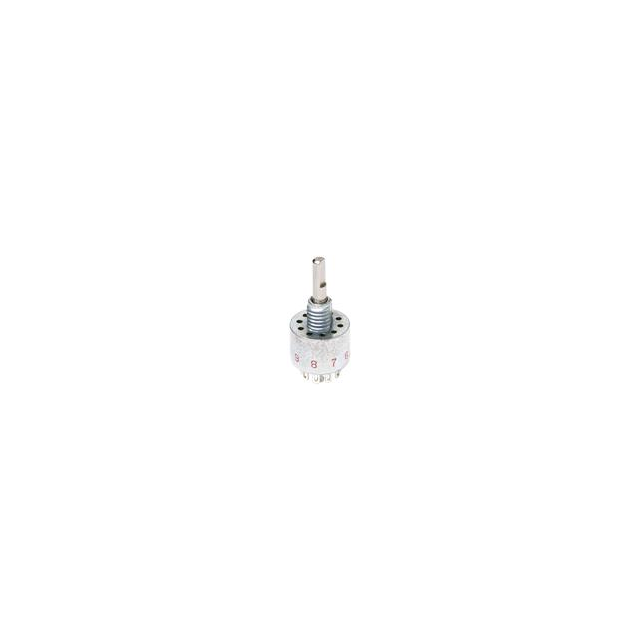

Image shown is a representation only
Manufacturer
Manufacturer No
MA04L1NZGF
Packaging
Tray
Description
SWITCH ROTARY 4POS 250MA 125V
Detailed Description
Rotary Switch 4 Position SP4T 250mA (AC/DC) 125 VAC Panel Mount
DataSheet
Series
M
Features
IP67 - Dust Tight, Waterproof
Packaging
Tray
Index Stops
Fixed
Part Status
Active
Manufacturer
C&K
Actuator Type
Flatted (3.17mm Dia)
Mounting Type
Panel Mount
Angle of Throw
36°
Contact Finish
Gold
Contact Timing
Non-Shorting (BBM)
Actuator Length
10.16mm
Number of Decks
1
Circuit per Deck
SP4T
Contact Material
Copper Alloy
Termination Style
Solder Lug
Depth Behind Panel
14.86mm
Base Product Number
MA04L1N
Number of Positions
4
Voltage Rating - AC
125 V
Voltage Rating - DC
28 V
Current Rating (Amps)
250mA (AC/DC)
Panel Cutout Dimensions
Circular - 6.60mm Dia
Number of Poles per Deck
1
| Attribute | Value |
|---|---|
| Series | M |
| Features | IP67 - Dust Tight, Waterproof |
| Packaging | Tray |
| Index Stops | Fixed |
| Part Status | Active |
| Manufacturer | C&K |
| Actuator Type | Flatted (3.17mm Dia) |
| Mounting Type | Panel Mount |
| Angle of Throw | 36° |
| Contact Finish | Gold |
| Contact Timing | Non-Shorting (BBM) |
| Actuator Length | 10.16mm |
| Number of Decks | 1 |
| Circuit per Deck | SP4T |
| Contact Material | Copper Alloy |
| Termination Style | Solder Lug |
| Depth Behind Panel | 14.86mm |
| Base Product Number | MA04L1N |
| Number of Positions | 4 |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 28 V |
| Current Rating (Amps) | 250mA (AC/DC) |
| Panel Cutout Dimensions | Circular - 6.60mm Dia |
| Number of Poles per Deck | 1 |
