Step1: Product
C&K A11205RNZQ

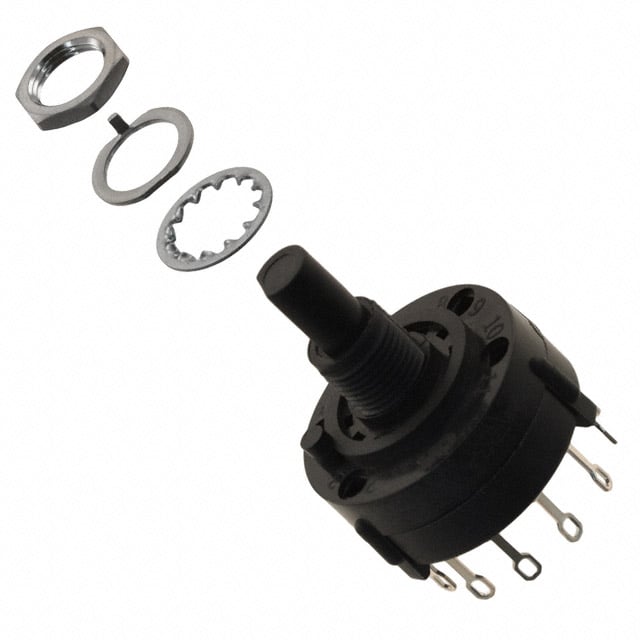

Image shown is a representation only
Manufacturer
Manufacturer No
A11205RNZQ
Packaging
Tray
Description
SWITCH ROTARY 12POS 2.5A 125V
Detailed Description
Rotary Switch 12 Position SP12T 2.5A (AC), 350mA (DC) 125 VAC Panel Mount
Datasheet
Series
A
Packaging
Tray
Index Stops
Fixed
Manufacturer
C&K
Actuator Type
Flatted (6.35mm Dia)
Mounting Type
Panel Mount
Angle of Throw
30°
Contact Finish
Silver
Contact Timing
Non-Shorting (BBM)
Actuator Length
12.70mm
Number of Decks
1
Circuit per Deck
SP12T
Contact Material
Silver (Ag)
Termination Style
Solder Lug
Depth Behind Panel
20.83mm
Base Product Number
A11205RN
Number of Positions
12
Voltage Rating - AC
125 V
Voltage Rating - DC
125 V
Current Rating (Amps)
2.5A (AC), 350mA (DC)
Panel Cutout Dimensions
Circular - 9.80mm Dia
Number of Poles per Deck
1
| Attribute | Value |
|---|---|
| Series | A |
| Packaging | Tray |
| Index Stops | Fixed |
| Manufacturer | C&K |
| Actuator Type | Flatted (6.35mm Dia) |
| Mounting Type | Panel Mount |
| Angle of Throw | 30° |
| Contact Finish | Silver |
| Contact Timing | Non-Shorting (BBM) |
| Actuator Length | 12.70mm |
| Number of Decks | 1 |
| Circuit per Deck | SP12T |
| Contact Material | Silver (Ag) |
| Termination Style | Solder Lug |
| Depth Behind Panel | 20.83mm |
| Base Product Number | A11205RN |
| Number of Positions | 12 |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 V |
| Current Rating (Amps) | 2.5A (AC), 350mA (DC) |
| Panel Cutout Dimensions | Circular - 9.80mm Dia |
| Number of Poles per Deck | 1 |
