Step1: Product

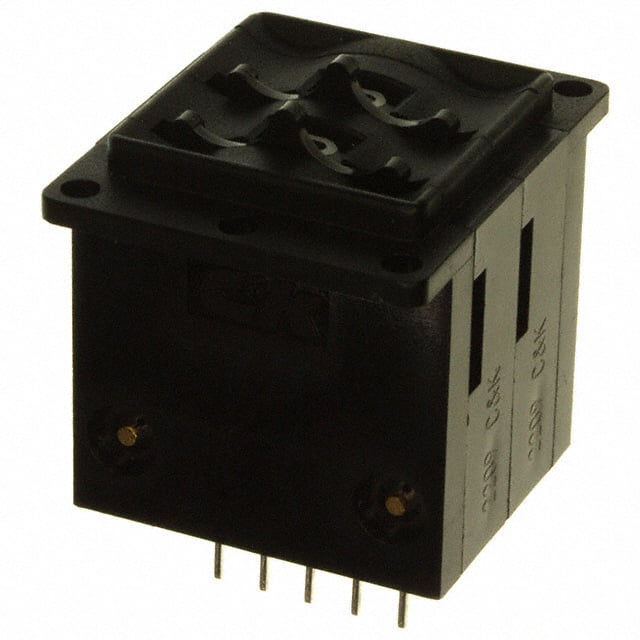

C&K 322710B01
Image shown is a representation only
Manufacturer
Manufacturer No
322710B01
Packaging
Bulk
Description
SWITCH THUMB BCD 0.1A 120V/28V
Detailed Description
Thumbwheel Switch BCD 0.1A @ 120VAC/28VDC Panel Mount, Screw
DataSheet
Color
Black
Series
3
End Caps
Included
Features
Sealed Contacts
Read Out
0 ~ 9
Packaging
Bulk
Output Code
BCD
Part Status
Obsolete
Manufacturer
C&K
Actuator Type
Thumbwheel
Mounting Type
Panel Mount, Screw
Section Width
0.350" (8.89mm)
Electrical Life
100,000 Cycles
Contact Material
Copper Alloy
Housing Material
Acrylonitrile Butadiene Styrene (ABS)
Termination Style
PC Pin
Number of Sections
2
Depth Behind Flange
33.12mm
Operating Temperature
-40°C ~ 65°C
Panel Cutout Dimensions
Rectangular - 26.42mm x 25.91mm
Contact Rating @ Voltage
0.1A @ 120VAC/28VDC
| Attribute | Value |
|---|---|
| Color | Black |
| Series | 3 |
| End Caps | Included |
| Features | Sealed Contacts |
| Read Out | 0 ~ 9 |
| Packaging | Bulk |
| Output Code | BCD |
| Part Status | Obsolete |
| Manufacturer | C&K |
| Actuator Type | Thumbwheel |
| Mounting Type | Panel Mount, Screw |
| Section Width | 0.350" (8.89mm) |
| Electrical Life | 100,000 Cycles |
| Contact Material | Copper Alloy |
| Housing Material | Acrylonitrile Butadiene Styrene (ABS) |
| Termination Style | PC Pin |
| Number of Sections | 2 |
| Depth Behind Flange | 33.12mm |
| Operating Temperature | -40°C ~ 65°C |
| Panel Cutout Dimensions | Rectangular - 26.42mm x 25.91mm |
| Contact Rating @ Voltage | 0.1A @ 120VAC/28VDC |
