Step1: Product

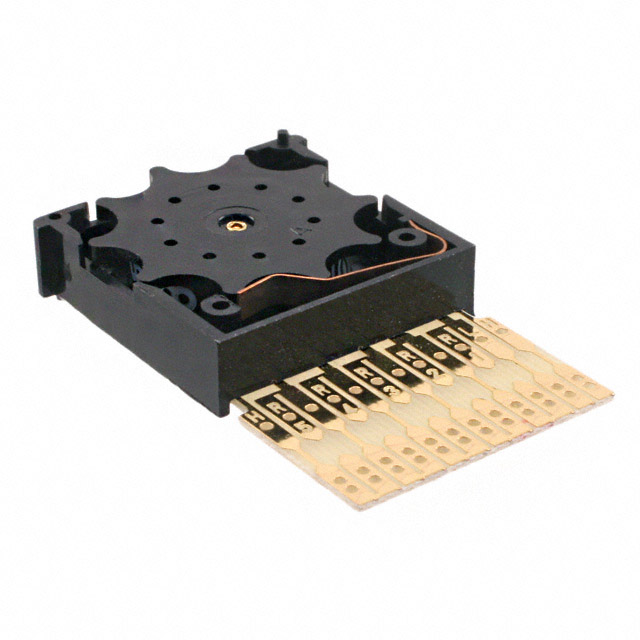

C&K 301409100
Image shown is a representation only
Manufacturer
Manufacturer No
301409100
Packaging
Bulk
Description
SWITCH THUMBWHEEL RES DEC
Detailed Description
Thumbwheel Switch Resistor Decade 0.1A @ 120VAC/28VDC Panel Mount, Snap-In
DataSheet
Color
Black
Series
3
End Caps
Sold Separately
Read Out
0 ~ 9
Packaging
Bulk
Output Code
Resistor Decade
Part Status
Obsolete
Manufacturer
C&K
Actuator Type
Thumbwheel
Mounting Type
Panel Mount, Snap-In
Section Width
0.315" (8.00mm)
Electrical Life
100,000 Cycles
Contact Material
Copper Alloy
Housing Material
Acrylonitrile Butadiene Styrene (ABS)
Termination Style
Card Edge/Solder Pad with Component Mounting
Number of Sections
1
Base Product Number
301409
Depth Behind Flange
49.28mm
Operating Temperature
-40°C ~ 65°C
Contact Rating @ Voltage
0.1A @ 120VAC/28VDC
| Attribute | Value |
|---|---|
| Color | Black |
| Series | 3 |
| End Caps | Sold Separately |
| Read Out | 0 ~ 9 |
| Packaging | Bulk |
| Output Code | Resistor Decade |
| Part Status | Obsolete |
| Manufacturer | C&K |
| Actuator Type | Thumbwheel |
| Mounting Type | Panel Mount, Snap-In |
| Section Width | 0.315" (8.00mm) |
| Electrical Life | 100,000 Cycles |
| Contact Material | Copper Alloy |
| Housing Material | Acrylonitrile Butadiene Styrene (ABS) |
| Termination Style | Card Edge/Solder Pad with Component Mounting |
| Number of Sections | 1 |
| Base Product Number | 301409 |
| Depth Behind Flange | 49.28mm |
| Operating Temperature | -40°C ~ 65°C |
| Contact Rating @ Voltage | 0.1A @ 120VAC/28VDC |
