Step1: Product

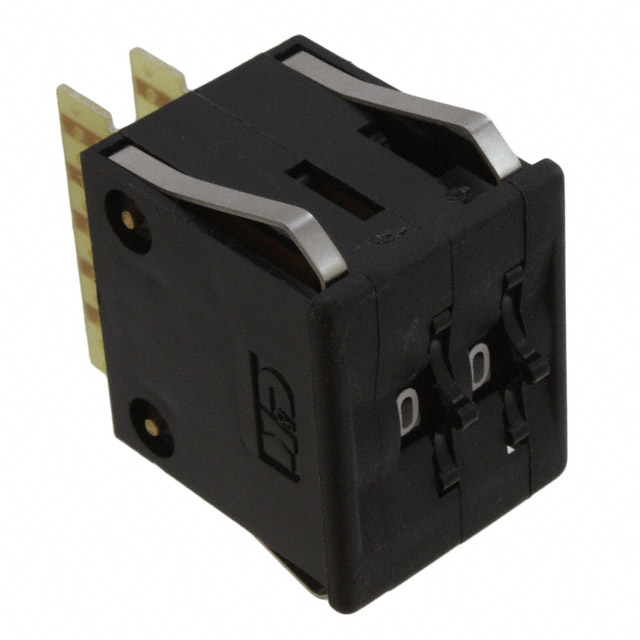

C&K 322100000
Image shown is a representation only
Manufacturer
Manufacturer No
322100000
Packaging
Bulk
Description
SWITCH THUMB BCD 0.1A 120V/28V
Detailed Description
Thumbwheel Switch BCD 0.1A @ 120VAC/28VDC Panel Mount, Snap-In
DataSheet
Color
Black
Series
3
End Caps
Included
Read Out
0 ~ 9
Packaging
Bulk
Output Code
BCD
Part Status
Obsolete
Manufacturer
C&K
Actuator Type
Thumbwheel
Mounting Type
Panel Mount, Snap-In
Section Width
0.315" (8.00mm)
Electrical Life
100,000 Cycles
Contact Material
Copper Alloy
Housing Material
Acrylonitrile Butadiene Styrene (ABS)
Termination Style
Card Edge/Solder Pad
Number of Sections
2
Base Product Number
322100
Depth Behind Flange
37.85mm
Operating Temperature
-40°C ~ 65°C
Panel Cutout Dimensions
Rectangular - 31.00mm x 24.28mm
Contact Rating @ Voltage
0.1A @ 120VAC/28VDC
| Attribute | Value |
|---|---|
| Color | Black |
| Series | 3 |
| End Caps | Included |
| Read Out | 0 ~ 9 |
| Packaging | Bulk |
| Output Code | BCD |
| Part Status | Obsolete |
| Manufacturer | C&K |
| Actuator Type | Thumbwheel |
| Mounting Type | Panel Mount, Snap-In |
| Section Width | 0.315" (8.00mm) |
| Electrical Life | 100,000 Cycles |
| Contact Material | Copper Alloy |
| Housing Material | Acrylonitrile Butadiene Styrene (ABS) |
| Termination Style | Card Edge/Solder Pad |
| Number of Sections | 2 |
| Base Product Number | 322100 |
| Depth Behind Flange | 37.85mm |
| Operating Temperature | -40°C ~ 65°C |
| Panel Cutout Dimensions | Rectangular - 31.00mm x 24.28mm |
| Contact Rating @ Voltage | 0.1A @ 120VAC/28VDC |
