Step1: Product

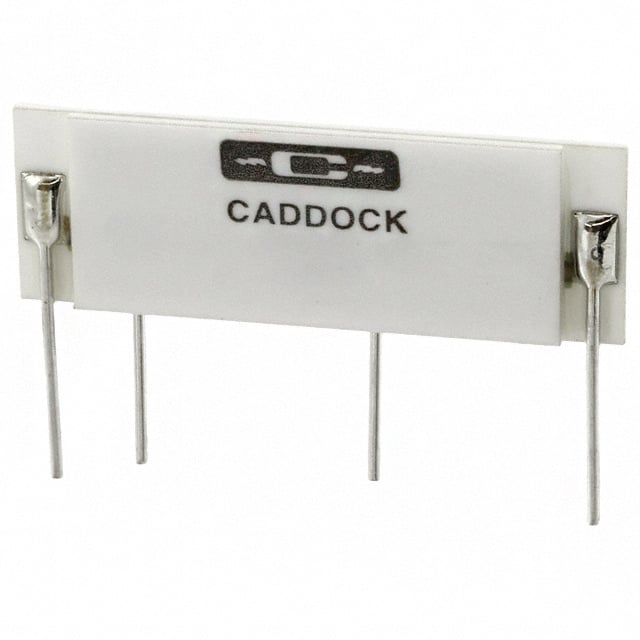

Caddock Electronics Inc. USVD2-A10M-010-02
Image shown is a representation only
Manufacturer
Manufacturer No
USVD2-A10M-010-02
Package
4-SIP Variation
Packaging
Bulk
Description
RES NETWORK 2 RES MULT OHM 4SIP
Detailed Description
10k, 9.99M Ohm ±0.1% 100mW Power Per Element Voltage Divider 2 Resistor Network/Array ±10ppm/°C 4-SIP Variation
Series
USVD
Packaging
Bulk
Tolerance
±0.1%
Applications
Voltage Divider (TCR Matched)
Circuit Type
Voltage Divider
Manufacturer
Caddock Electronics Inc.
Mounting Type
Through Hole
Number of Pins
4
Package / Case
4-SIP Variation
Size / Dimension
1.500" L x 0.155" W (38.10mm x 3.94mm)
Power Per Element
100mW
Resistance (Ohms)
10k, 9.99M
Number of Resistors
2
Resistor-Ratio-Drift
±2ppm/°C
Height - Seated (Max)
0.520" (13.21mm)
Operating Temperature
-40°C ~ 85°C
Resistor Matching Ratio
±0.01%
Temperature Coefficient
±10ppm/°C
| Attribute | Value |
|---|---|
| Series | USVD |
| Packaging | Bulk |
| Tolerance | ±0.1% |
| Applications | Voltage Divider (TCR Matched) |
| Circuit Type | Voltage Divider |
| Manufacturer | Caddock Electronics Inc. |
| Mounting Type | Through Hole |
| Number of Pins | 4 |
| Package / Case | 4-SIP Variation |
| Size / Dimension | 1.500" L x 0.155" W (38.10mm x 3.94mm) |
| Power Per Element | 100mW |
| Resistance (Ohms) | 10k, 9.99M |
| Number of Resistors | 2 |
| Resistor-Ratio-Drift | ±2ppm/°C |
| Height - Seated (Max) | 0.520" (13.21mm) |
| Operating Temperature | -40°C ~ 85°C |
| Resistor Matching Ratio | ±0.01% |
| Temperature Coefficient | ±10ppm/°C |
