Step1: Product
Caddock Electronics Inc. 1776-C4815

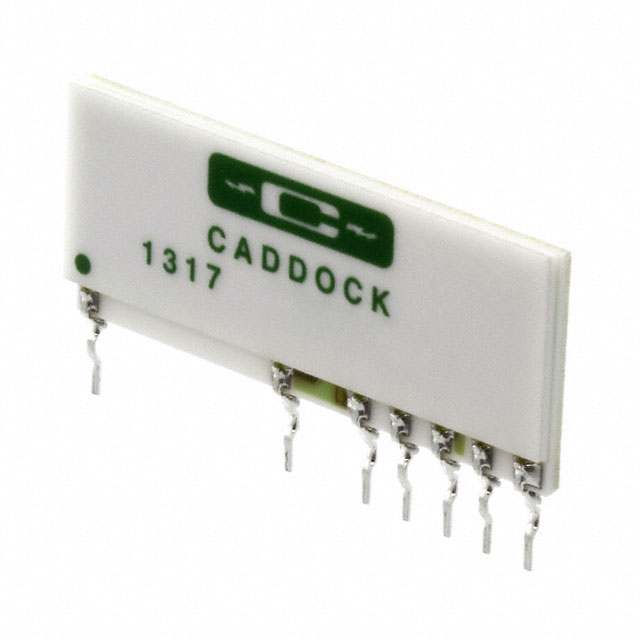

Image shown is a representation only
Manufacturer
Manufacturer No
1776-C4815
Package
12-SIP, 7 Leads
Packaging
Bulk
Description
RES NETWORK 5 RES MULT OHM 12SIP
Detailed Description
1k, 10k, 101k, 1M, 10M Ohm ±0.1% 62.5mW Power Per Element Decade Resistor 5 Resistor Network/Array ±30ppm/°C 12-SIP, 7 Leads
Datasheet
Series
1776
Packaging
Bulk
Tolerance
±0.1%
Applications
Voltage Divider (TCR Matched)
Circuit Type
Decade Resistor
Manufacturer
Caddock Electronics Inc.
Mounting Type
Through Hole
Number of Pins
7
Package / Case
12-SIP, 7 Leads
Size / Dimension
1.200" L x 0.110" W (30.48mm x 2.79mm)
Power Per Element
62.5mW
Resistance (Ohms)
1k, 10k, 101k, 1M, 10M
Number of Resistors
5
Resistor-Ratio-Drift
±5ppm/°C
Height - Seated (Max)
0.550" (13.97mm)
Operating Temperature
-40°C ~ 85°C
Resistor Matching Ratio
±0.05%
Temperature Coefficient
±30ppm/°C
| Attribute | Value |
|---|---|
| Series | 1776 |
| Packaging | Bulk |
| Tolerance | ±0.1% |
| Applications | Voltage Divider (TCR Matched) |
| Circuit Type | Decade Resistor |
| Manufacturer | Caddock Electronics Inc. |
| Mounting Type | Through Hole |
| Number of Pins | 7 |
| Package / Case | 12-SIP, 7 Leads |
| Size / Dimension | 1.200" L x 0.110" W (30.48mm x 2.79mm) |
| Power Per Element | 62.5mW |
| Resistance (Ohms) | 1k, 10k, 101k, 1M, 10M |
| Number of Resistors | 5 |
| Resistor-Ratio-Drift | ±5ppm/°C |
| Height - Seated (Max) | 0.550" (13.97mm) |
| Operating Temperature | -40°C ~ 85°C |
| Resistor Matching Ratio | ±0.05% |
| Temperature Coefficient | ±30ppm/°C |
