Step1: Product
Caddock Electronics Inc. HVD5-B50M-050-05

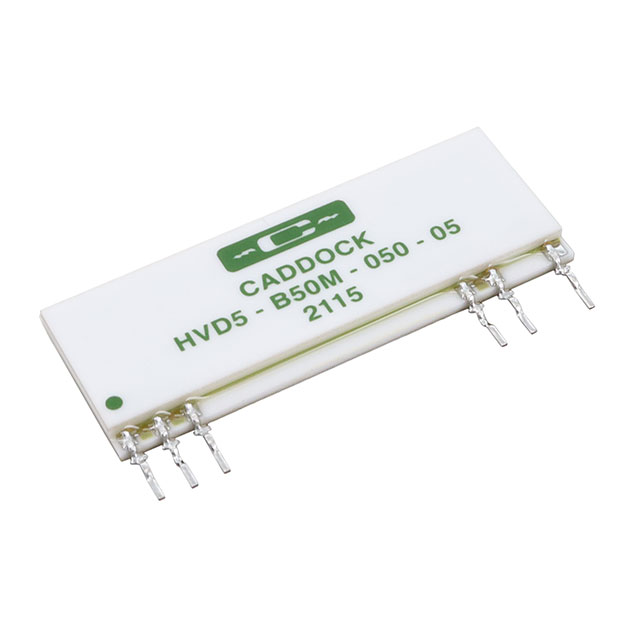

Image shown is a representation only
Manufacturer
Manufacturer No
HVD5-B50M-050-05
Package
15-SIP, 6 Leads
Packaging
Bag
Description
VOLTAGE DIVIDER
Detailed Description
500k, 49.5M Ohm ±0.1% 31mW Power Per Element Voltage Divider 2 Resistor Network/Array ±30ppm/°C 15-SIP, 6 Leads
Series
HVD
Packaging
Bag
Tolerance
±0.1%
Applications
Voltage Divider (TCR Matched)
Circuit Type
Voltage Divider
Manufacturer
Caddock Electronics Inc.
Mounting Type
Through Hole
Number of Pins
6
Package / Case
15-SIP, 6 Leads
Size / Dimension
1.500" L x 0.110" W (38.10mm x 2.79mm)
Power Per Element
31mW
Resistance (Ohms)
500k, 49.5M
Number of Resistors
2
Resistor-Ratio-Drift
±5ppm/°C
Height - Seated (Max)
0.610" (15.50mm)
Operating Temperature
-40°C ~ 85°C
Resistor Matching Ratio
±0.05%
Temperature Coefficient
±30ppm/°C
| Attribute | Value |
|---|---|
| Series | HVD |
| Packaging | Bag |
| Tolerance | ±0.1% |
| Applications | Voltage Divider (TCR Matched) |
| Circuit Type | Voltage Divider |
| Manufacturer | Caddock Electronics Inc. |
| Mounting Type | Through Hole |
| Number of Pins | 6 |
| Package / Case | 15-SIP, 6 Leads |
| Size / Dimension | 1.500" L x 0.110" W (38.10mm x 2.79mm) |
| Power Per Element | 31mW |
| Resistance (Ohms) | 500k, 49.5M |
| Number of Resistors | 2 |
| Resistor-Ratio-Drift | ±5ppm/°C |
| Height - Seated (Max) | 0.610" (15.50mm) |
| Operating Temperature | -40°C ~ 85°C |
| Resistor Matching Ratio | ±0.05% |
| Temperature Coefficient | ±30ppm/°C |
