Step1: Product

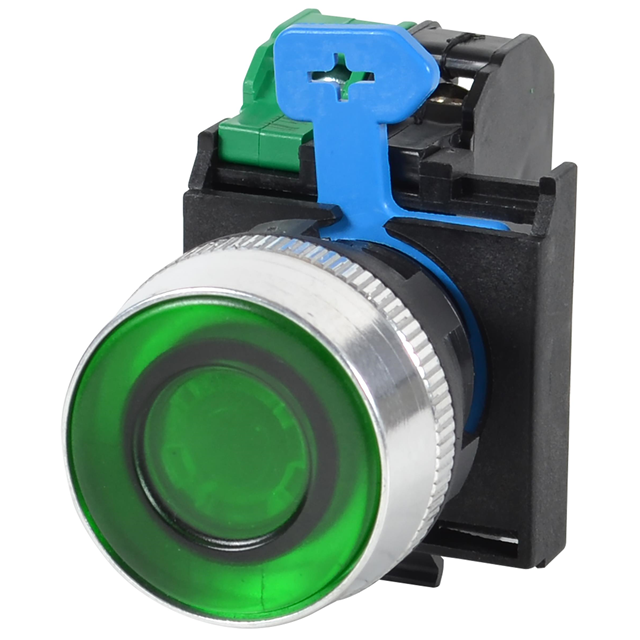

c3controls W22IPB-FG-FM24LG-10/01
Image shown is a representation only
Manufacturer
Manufacturer No
W22IPB-FG-FM24LG-10/01
Packaging
Bag
Description
22MM IPB 24V GN LED/LENS 1NO/1NC
Detailed Description
Pushbutton Switch DPST-NO/NC Standard, Illuminated Panel Mount, Rear
Datasheet
Mfr
c3controls
Type
Standard, Illuminated
Series
22
Circuit
DPST-NO/NC
Packaging
Bag
Actuator Type
Round, Button, Flush
Mounting Type
Panel Mount, Rear
Mechanical Life
5,000,000 Cycles
Switch Function
On-Mom, Off-Mom
Actuator Marking
No Marking
Termination Style
Screw Terminal
Ingress Protection
IP66 - Dust Tight, Water Resistant
Base Product Number
W22IPB
Voltage Rating - AC
72 V
Voltage Rating - DC
28 V
Color - Actuator/Cap
Green
Current Rating (Amps)
10A (AC), 2.5A (DC)
Operating Temperature
-40°C ~ 55°C
Panel Cutout Dimensions
Circular - 22.50mm Dia
Illumination Type, Color
LED, Green
Illumination Voltage (Nominal)
24 VAC/DC
| Attribute | Value |
|---|---|
| Mfr | c3controls |
| Type | Standard, Illuminated |
| Series | 22 |
| Circuit | DPST-NO/NC |
| Packaging | Bag |
| Actuator Type | Round, Button, Flush |
| Mounting Type | Panel Mount, Rear |
| Mechanical Life | 5,000,000 Cycles |
| Switch Function | On-Mom, Off-Mom |
| Actuator Marking | No Marking |
| Termination Style | Screw Terminal |
| Ingress Protection | IP66 - Dust Tight, Water Resistant |
| Base Product Number | W22IPB |
| Voltage Rating - AC | 72 V |
| Voltage Rating - DC | 28 V |
| Color - Actuator/Cap | Green |
| Current Rating (Amps) | 10A (AC), 2.5A (DC) |
| Operating Temperature | -40°C ~ 55°C |
| Panel Cutout Dimensions | Circular - 22.50mm Dia |
| Illumination Type, Color | LED, Green |
| Illumination Voltage (Nominal) | 24 VAC/DC |
