Step1: Product

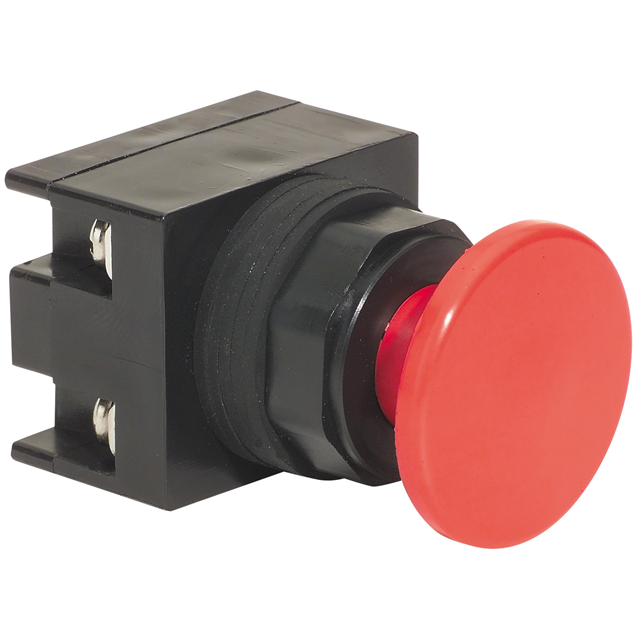

c3controls 22PPNONC-XPMRD
Image shown is a representation only
Manufacturer
Manufacturer No
22PPNONC-XPMRD
Packaging
Bag
Description
22MM PUSH PULL MSHRM CAP NONC
Detailed Description
Pushbutton Switch DPST-NO/NC Standard Panel Mount, Rear
Mfr
c3controls
Type
Standard
Series
22
Circuit
DPST-NO/NC
Packaging
Bag
Part Status
Active
Actuator Type
Round, Button, Mushroom
Mounting Type
Panel Mount, Rear
Mechanical Life
1,000,000 Cycles
Switch Function
On-Off, Off-On
Actuator Marking
No Marking
Termination Style
Screw Terminal
Ingress Protection
IP65 - Dust Tight, Water Resistant
Base Product Number
22PPNONC
Voltage Rating - AC
72 V
Voltage Rating - DC
28 V
Color - Actuator/Cap
Red
Current Rating (Amps)
10A (AC), 5A (DC)
Operating Temperature
-40°C ~ 55°C
Panel Cutout Dimensions
Circular - 25.50mm Dia
| Attribute | Value |
|---|---|
| Mfr | c3controls |
| Type | Standard |
| Series | 22 |
| Circuit | DPST-NO/NC |
| Packaging | Bag |
| Part Status | Active |
| Actuator Type | Round, Button, Mushroom |
| Mounting Type | Panel Mount, Rear |
| Mechanical Life | 1,000,000 Cycles |
| Switch Function | On-Off, Off-On |
| Actuator Marking | No Marking |
| Termination Style | Screw Terminal |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Base Product Number | 22PPNONC |
| Voltage Rating - AC | 72 V |
| Voltage Rating - DC | 28 V |
| Color - Actuator/Cap | Red |
| Current Rating (Amps) | 10A (AC), 5A (DC) |
| Operating Temperature | -40°C ~ 55°C |
| Panel Cutout Dimensions | Circular - 25.50mm Dia |
