Step1: Product
Boyd Laconia, LLC 563002T00000G

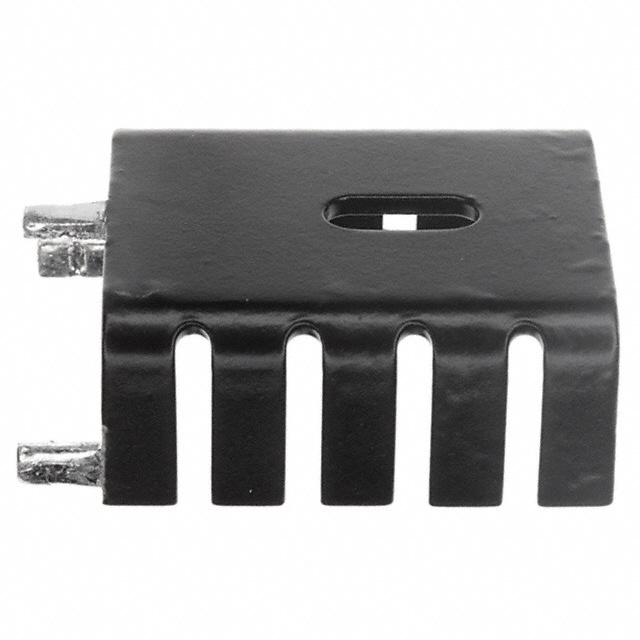

Image shown is a representation only
Manufacturer
Manufacturer No
563002T00000G
Packaging
Bulk
Description
HEATSINK TO-220 VERT MNT 1.18"
Detailed Description
Heat Sink TO-220 Aluminum 1.0W @ 20°C Board Level, Vertical
DataSheet
Mfr
Boyd Laconia, LLC
Type
Board Level, Vertical
Shape
Rectangular, Fins
Width
1.000" (25.40mm)
Length
1.181" (30.00mm)
Material
Aluminum
Packaging
Bulk
Fin Height
0.500" (12.70mm)
Part Status
Active
Package Cooled
TO-220
Material Finish
Black Paint with Solderable Tabs
Attachment Method
Bolt On and PC Pin
Thermal Resistance @ Natural
13.00°C/W
Power Dissipation @ Temperature Rise
1.0W @ 20°C
Thermal Resistance @ Forced Air Flow
4.00°C/W @ 600 LFM
| Attribute | Value |
|---|---|
| Mfr | Boyd Laconia, LLC |
| Type | Board Level, Vertical |
| Shape | Rectangular, Fins |
| Width | 1.000" (25.40mm) |
| Length | 1.181" (30.00mm) |
| Material | Aluminum |
| Packaging | Bulk |
| Fin Height | 0.500" (12.70mm) |
| Part Status | Active |
| Package Cooled | TO-220 |
| Material Finish | Black Paint with Solderable Tabs |
| Attachment Method | Bolt On and PC Pin |
| Thermal Resistance @ Natural | 13.00°C/W |
| Power Dissipation @ Temperature Rise | 1.0W @ 20°C |
| Thermal Resistance @ Forced Air Flow | 4.00°C/W @ 600 LFM |
