Step1: Product

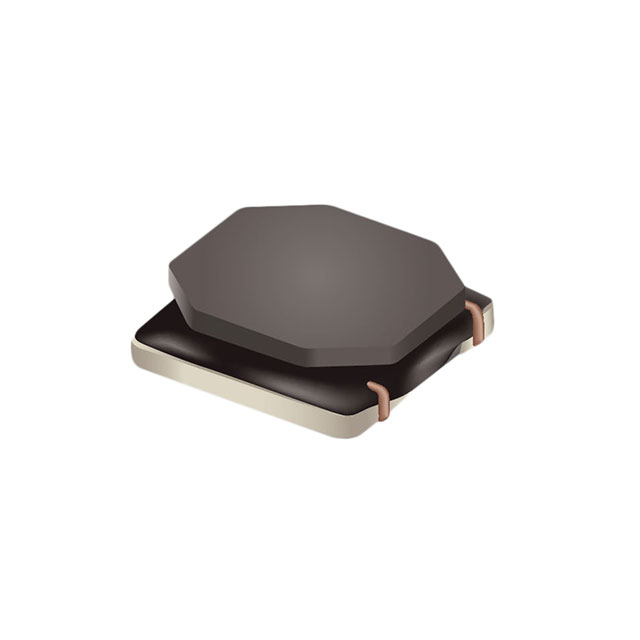

Bourns Inc. SRN4012TA-220M
Image shown is a representation only
Manufacturer
Manufacturer No
SRN4012TA-220M
Quantity
2,180
Availability
In Stock
Package
Nonstandard
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
FIXED IND 22UH 620MA 400 MOHM
Detailed Description
22 µH Shielded Drum Core, Wirewound Inductor 620 mA 400mOhm Nonstandard
Datasheet
Mfr
Bourns Inc.
Type
Drum Core, Wirewound
Series
SRN4012TA
Ratings
AEC-Q200
Q @ Freq
10 @ 100kHz
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shielding
Shielded
Tolerance
±20%
Inductance
22 µH
Mounting Type
Surface Mount
Package / Case
Nonstandard
Material - Core
Ferrite
Size / Dimension
0.157" L x 0.157" W (4.00mm x 4.00mm)
Base Product Number
SRN4012TA
DC Resistance (DCR)
400mOhm
Current Rating (Amps)
620 mA
Height - Seated (Max)
0.047" (1.20mm)
Operating Temperature
-40°C ~ 125°C
Frequency - Self Resonant
18MHz
Current - Saturation (Isat)
500mA
Inductance Frequency - Test
100 kHz
| Attribute | Value |
|---|---|
| Mfr | Bourns Inc. |
| Type | Drum Core, Wirewound |
| Series | SRN4012TA |
| Ratings | AEC-Q200 |
| Q @ Freq | 10 @ 100kHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 22 µH |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Material - Core | Ferrite |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Base Product Number | SRN4012TA |
| DC Resistance (DCR) | 400mOhm |
| Current Rating (Amps) | 620 mA |
| Height - Seated (Max) | 0.047" (1.20mm) |
| Operating Temperature | -40°C ~ 125°C |
| Frequency - Self Resonant | 18MHz |
| Current - Saturation (Isat) | 500mA |
| Inductance Frequency - Test | 100 kHz |
