Step1: Product

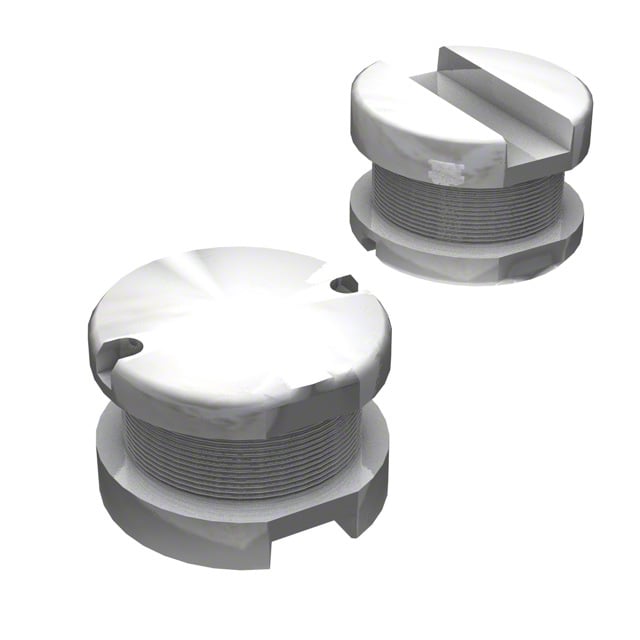

Bourns Inc. SDR0805-101KL
Image shown is a representation only
Manufacturer
Manufacturer No
SDR0805-101KL
Quantity
4,428
Availability
In Stock
Package
Nonstandard
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
FIXED IND 100UH 720MA 450 MOHM
Detailed Description
100 µH Unshielded Drum Core, Wirewound Inductor 720 mA 450mOhm Max Nonstandard
Datasheet
Mfr
Bourns Inc.
Type
Drum Core, Wirewound
Series
SDR0805
Q @ Freq
12 @ 796kHz
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shielding
Unshielded
Tolerance
±10%
Inductance
100 µH
Mounting Type
Surface Mount
Package / Case
Nonstandard
Material - Core
Ferrite
Size / Dimension
0.307" L x 0.307" W (7.80mm x 7.80mm)
Base Product Number
SDR0805
DC Resistance (DCR)
450mOhm Max
Current Rating (Amps)
720 mA
Height - Seated (Max)
0.209" (5.30mm)
Operating Temperature
-40°C ~ 125°C
Frequency - Self Resonant
7MHz
Current - Saturation (Isat)
1.1A
Inductance Frequency - Test
1 kHz
| Attribute | Value |
|---|---|
| Mfr | Bourns Inc. |
| Type | Drum Core, Wirewound |
| Series | SDR0805 |
| Q @ Freq | 12 @ 796kHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shielding | Unshielded |
| Tolerance | ±10% |
| Inductance | 100 µH |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Material - Core | Ferrite |
| Size / Dimension | 0.307" L x 0.307" W (7.80mm x 7.80mm) |
| Base Product Number | SDR0805 |
| DC Resistance (DCR) | 450mOhm Max |
| Current Rating (Amps) | 720 mA |
| Height - Seated (Max) | 0.209" (5.30mm) |
| Operating Temperature | -40°C ~ 125°C |
| Frequency - Self Resonant | 7MHz |
| Current - Saturation (Isat) | 1.1A |
| Inductance Frequency - Test | 1 kHz |
