Step1: Product

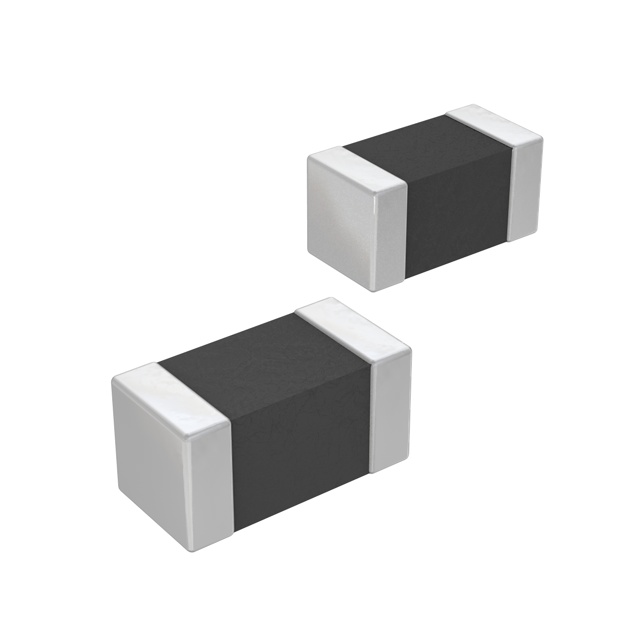

Bourns Inc. CM100505-2N7DL
Image shown is a representation only
Manufacturer
Manufacturer No
CM100505-2N7DL
Package
0402 (1005 Metric)
Packaging
Tape & Reel (TR)
Description
FIXED IND 2.7NH 400MA 100 MOHM
Detailed Description
2.7 nH Unshielded Drum Core, Wirewound Inductor 400 mA 100mOhm Max 0402 (1005 Metric)
DataSheet
Mfr
Bourns Inc.
Type
Drum Core, Wirewound
Series
CM100505
Q @ Freq
8 @ 100MHz
Packaging
Tape & Reel (TR)
Shielding
Unshielded
Tolerance
±0.3nH
Inductance
2.7 nH
Part Status
Obsolete
Mounting Type
Surface Mount
Package / Case
0402 (1005 Metric)
Material - Core
Alumina
Size / Dimension
0.039" L x 0.020" W (1.00mm x 0.50mm)
Base Product Number
CM100505
DC Resistance (DCR)
100mOhm Max
Current Rating (Amps)
400 mA
Height - Seated (Max)
0.024" (0.60mm)
Operating Temperature
-40°C ~ 100°C
Supplier Device Package
0402 (1005 Metric)
Frequency - Self Resonant
5.5GHz
Inductance Frequency - Test
100 MHz
| Attribute | Value |
|---|---|
| Mfr | Bourns Inc. |
| Type | Drum Core, Wirewound |
| Series | CM100505 |
| Q @ Freq | 8 @ 100MHz |
| Packaging | Tape & Reel (TR) |
| Shielding | Unshielded |
| Tolerance | ±0.3nH |
| Inductance | 2.7 nH |
| Part Status | Obsolete |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Material - Core | Alumina |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Base Product Number | CM100505 |
| DC Resistance (DCR) | 100mOhm Max |
| Current Rating (Amps) | 400 mA |
| Height - Seated (Max) | 0.024" (0.60mm) |
| Operating Temperature | -40°C ~ 100°C |
| Supplier Device Package | 0402 (1005 Metric) |
| Frequency - Self Resonant | 5.5GHz |
| Inductance Frequency - Test | 100 MHz |
