Step1: Product

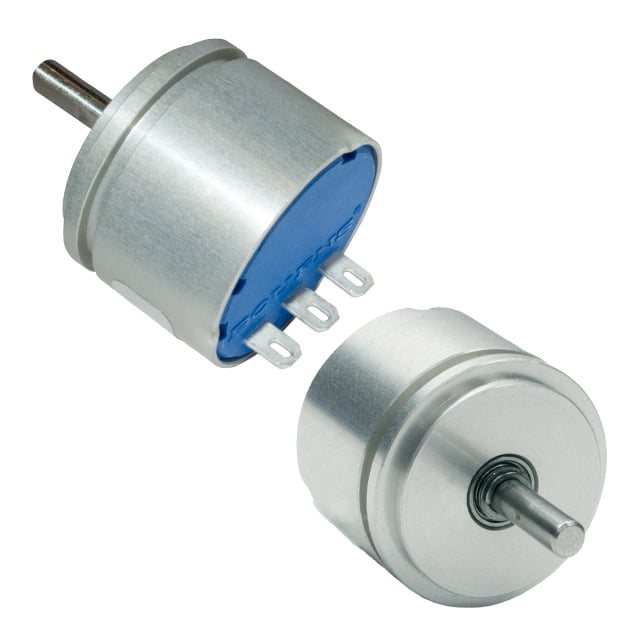

Bourns Inc. AMS22U5A1BHARL108
Image shown is a representation only
Manufacturer
Manufacturer No
AMS22U5A1BHARL108
Package
Module, Round Shaft
Packaging
Tray
Description
SINGLE TURN NON-CONTACT MAGNETIC
Detailed Description
Hall Effect Sensor Rotary Position Round Shaft Solder Lug
Datasheet
Output
Analog Voltage
Series
AMS22U
Linearity
±0.5%
Packaging
Tray
Technology
Hall Effect
Manufacturer
Bourns Inc.
Actuator Type
Round Shaft
For Measuring
Rotary Position
Mounting Type
Panel Mount
Output Signal
Clockwise Increase
Package / Case
Module, Round Shaft
Voltage - Supply
5V
Termination Style
Solder Lug
Operating Temperature
-40°C ~ 125°C
Rotation Angle - Electrical, Mechanical
10° ~ 80°, Continuous
| Attribute | Value |
|---|---|
| Output | Analog Voltage |
| Series | AMS22U |
| Linearity | ±0.5% |
| Packaging | Tray |
| Technology | Hall Effect |
| Manufacturer | Bourns Inc. |
| Actuator Type | Round Shaft |
| For Measuring | Rotary Position |
| Mounting Type | Panel Mount |
| Output Signal | Clockwise Increase |
| Package / Case | Module, Round Shaft |
| Voltage - Supply | 5V |
| Termination Style | Solder Lug |
| Operating Temperature | -40°C ~ 125°C |
| Rotation Angle - Electrical, Mechanical | 10° ~ 80°, Continuous |
