Step1: Product

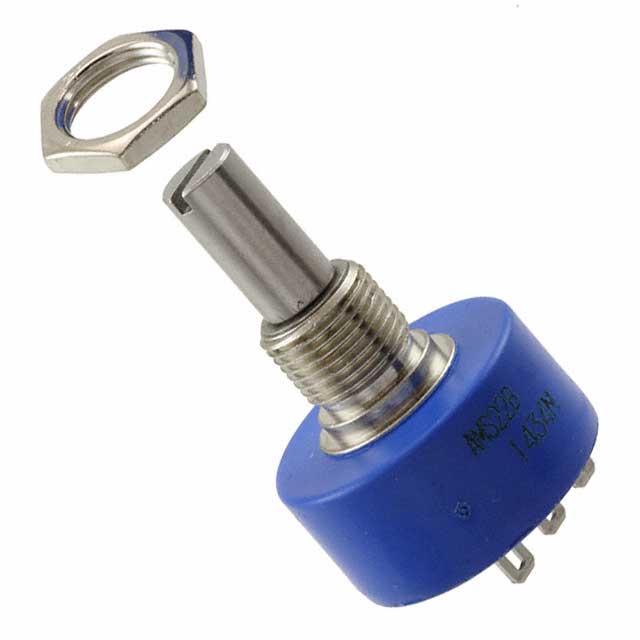

Bourns Inc. AMS22B5A1BLAFL334S
Image shown is a representation only
Manufacturer
Manufacturer No
AMS22B5A1BLAFL334S
Package
Module, Flatted Shaft
Packaging
Tray
Description
SENSOR ROTARY 340DEG SOLDER LUG
Detailed Description
Hall Effect Sensor Rotary Position Flatted Shaft Solder Lug
DataSheet
Output
Analog Voltage
Series
AMS22B
Linearity
±0.5%
Packaging
Tray
Technology
Hall Effect
Part Status
Active
Manufacturer
Bourns Inc.
Actuator Type
Flatted Shaft
For Measuring
Rotary Position
Mounting Type
Panel Mount
Output Signal
Clockwise Increase
Package / Case
Module, Flatted Shaft
Voltage - Supply
5V
Termination Style
Solder Lug
Base Product Number
AMS22B
Operating Temperature
-40°C ~ 125°C
Rotation Angle - Electrical, Mechanical
10° ~ 340°, Continuous
| Attribute | Value |
|---|---|
| Output | Analog Voltage |
| Series | AMS22B |
| Linearity | ±0.5% |
| Packaging | Tray |
| Technology | Hall Effect |
| Part Status | Active |
| Manufacturer | Bourns Inc. |
| Actuator Type | Flatted Shaft |
| For Measuring | Rotary Position |
| Mounting Type | Panel Mount |
| Output Signal | Clockwise Increase |
| Package / Case | Module, Flatted Shaft |
| Voltage - Supply | 5V |
| Termination Style | Solder Lug |
| Base Product Number | AMS22B |
| Operating Temperature | -40°C ~ 125°C |
| Rotation Angle - Electrical, Mechanical | 10° ~ 340°, Continuous |
