Step1: Product

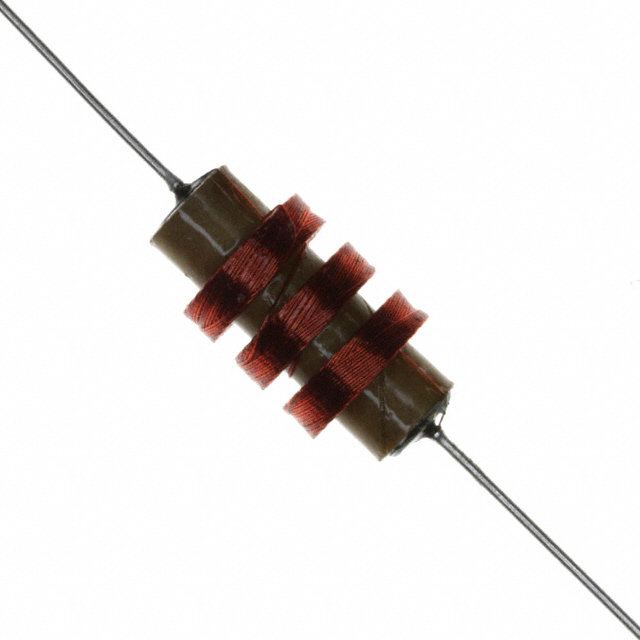

Bourns Inc. 6306-RC
Image shown is a representation only
Manufacturer
Manufacturer No
6306-RC
Package
Axial
Packaging
Bag
Description
FIXED IND 10MH 100MA 31 OHM TH
Detailed Description
10 mH Unshielded Drum Core, Wirewound Inductor 100 mA 31Ohm Max Axial
DataSheet
Mfr
Bourns Inc.
Type
Drum Core, Wirewound
Series
6300
Q @ Freq
95 @ 79.6kHz
Packaging
Bag
Shielding
Unshielded
Tolerance
±5%
Inductance
10 mH
Part Status
Obsolete
Mounting Type
Through Hole
Package / Case
Axial
Material - Core
Ferrite
Size / Dimension
0.530" Dia x 0.875" L (13.46mm x 22.22mm)
Base Product Number
6306
DC Resistance (DCR)
31Ohm Max
Current Rating (Amps)
100 mA
Operating Temperature
-55°C ~ 105°C
Frequency - Self Resonant
710kHz
Inductance Frequency - Test
79.6 kHz
| Attribute | Value |
|---|---|
| Mfr | Bourns Inc. |
| Type | Drum Core, Wirewound |
| Series | 6300 |
| Q @ Freq | 95 @ 79.6kHz |
| Packaging | Bag |
| Shielding | Unshielded |
| Tolerance | ±5% |
| Inductance | 10 mH |
| Part Status | Obsolete |
| Mounting Type | Through Hole |
| Package / Case | Axial |
| Material - Core | Ferrite |
| Size / Dimension | 0.530" Dia x 0.875" L (13.46mm x 22.22mm) |
| Base Product Number | 6306 |
| DC Resistance (DCR) | 31Ohm Max |
| Current Rating (Amps) | 100 mA |
| Operating Temperature | -55°C ~ 105°C |
| Frequency - Self Resonant | 710kHz |
| Inductance Frequency - Test | 79.6 kHz |
