Step1: Product

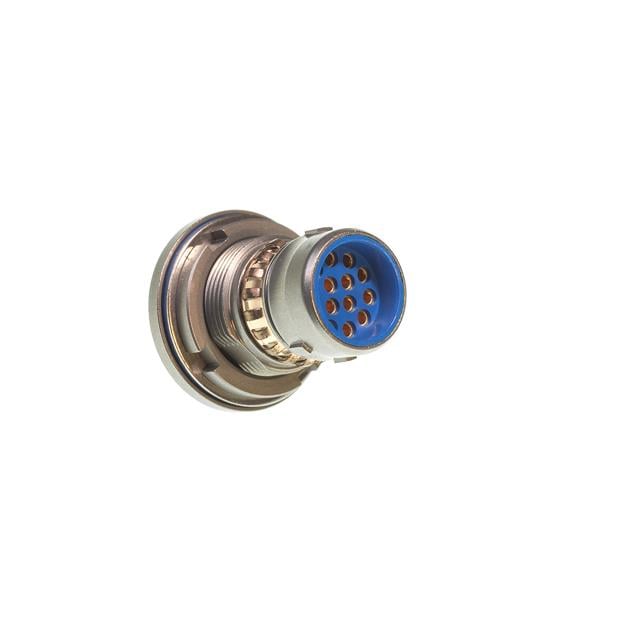

BERNIER Connect CMA 7N14Y1JC
Image shown is a representation only
Manufacturer
Manufacturer No
CMA 7N14Y1JC
Packaging
Tube
Description
RECEPTACLE WITH 14 CONTACTS FOR
Detailed Description
14 Position Circular Connector Receptacle, Male Pins Solder Cup
Datasheet
Mfr
BERNIER Connect
Color
Silver
Series
CMA
Features
Board Guide
Packaging
Tube
Shielding
Shielded
Orientation
N (Normal)
Termination
Solder Cup
Mounting Type
Free Hanging (In-Line)
Connector Type
Receptacle, Male Pins
Fastening Type
Threaded
Shell Material
Stainless Steel
Voltage Rating
60V
Insert Material
Thermoplastic
Contact Material
Copper Alloy
Primary Material
Metal
Number of Positions
14
Current Rating (Amps)
1.5A
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
4.92µin (0.125µm)
| Attribute | Value |
|---|---|
| Mfr | BERNIER Connect |
| Color | Silver |
| Series | CMA |
| Features | Board Guide |
| Packaging | Tube |
| Shielding | Shielded |
| Orientation | N (Normal) |
| Termination | Solder Cup |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle, Male Pins |
| Fastening Type | Threaded |
| Shell Material | Stainless Steel |
| Voltage Rating | 60V |
| Insert Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Primary Material | Metal |
| Number of Positions | 14 |
| Current Rating (Amps) | 1.5A |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 4.92µin (0.125µm) |
