Step1: Product

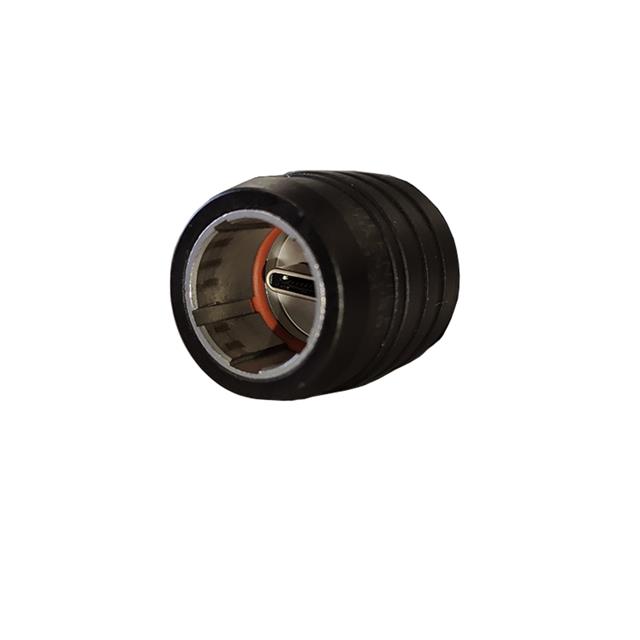

BERNIER Connect CMA 7N-USBC PCB
Image shown is a representation only
Manufacturer
Manufacturer No
CMA 7N-USBC PCB
Packaging
Tube
Description
CMA-USBC RECEPTACLE KEYWAY N PCB
Detailed Description
USB-C (USB TYPE-C) Receptacle Connector 24 Position Panel Mount
DataSheet
Gender
Receptacle
Series
CMA-USB
Packaging
Tube
Shielding
Shielded
Part Status
Active
Termination
Solder
Manufacturer
BERNIER Connect
Mating Cycles
10000
Mounting Type
Panel Mount
Connector Type
USB-C (USB TYPE-C)
Contact Finish
Gold
Number of Ports
1
Voltage - Rated
30V
Mounting Feature
Bulkhead - Front Side Nut
Ingress Protection
IP67 - Dust Tight, Waterproof
Number of Contacts
24
Current Rating (Amps)
0.25A, 5A
Operating Temperature
-40°C ~ 85°C
Shell/Shielding Material
Steel, Stainless
| Attribute | Value |
|---|---|
| Gender | Receptacle |
| Series | CMA-USB |
| Packaging | Tube |
| Shielding | Shielded |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | BERNIER Connect |
| Mating Cycles | 10000 |
| Mounting Type | Panel Mount |
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Number of Ports | 1 |
| Voltage - Rated | 30V |
| Mounting Feature | Bulkhead - Front Side Nut |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Number of Contacts | 24 |
| Current Rating (Amps) | 0.25A, 5A |
| Operating Temperature | -40°C ~ 85°C |
| Shell/Shielding Material | Steel, Stainless |
