BellWether 70316-E458

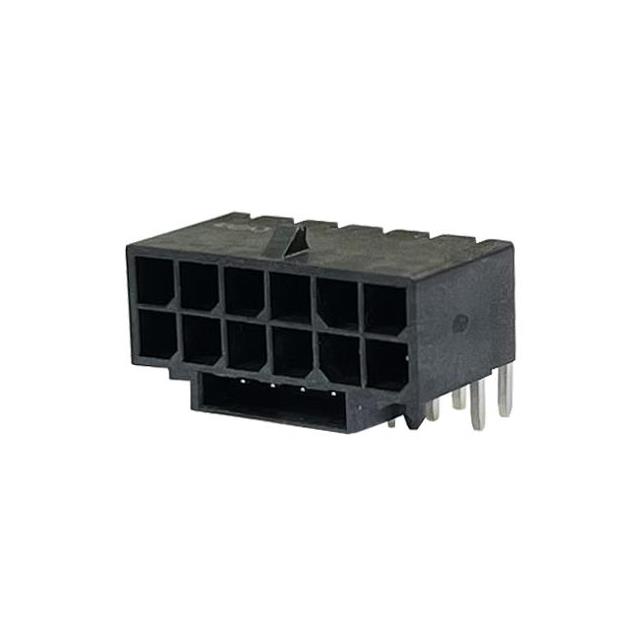

Image shown is a representation only
Manufacturer
Manufacturer No
70316-E458
Packaging
Tape & Reel (TR)
Description
HEADER PCIe CEM5 16POS R/A HCS
Detailed Description
Connector Header Through Hole, Right Angle 16 (12 Power + 4 Signal) position
DataSheet
Mfr
BellWether
Style
Board to Cable/Wire
Features
Board Guide
Packaging
Tape & Reel (TR)
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Fastening Type
Locking Ramp
Number of Rows
3
Voltage Rating
600V
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.390" (9.91mm)
Insulation Material
Thermoplastic, Glass Filled
Number of Positions
16 (12 Power + 4 Signal)
Contact Finish - Post
Tin
Contact Length - Post
0.125" (3.18mm)
Operating Temperature
-40°C ~ 105°C
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
100.0µin (2.54µm)
| Attribute | Value |
|---|---|
| Mfr | BellWether |
| Style | Board to Cable/Wire |
| Features | Board Guide |
| Packaging | Tape & Reel (TR) |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Locking Ramp |
| Number of Rows | 3 |
| Voltage Rating | 600V |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.390" (9.91mm) |
| Insulation Material | Thermoplastic, Glass Filled |
| Number of Positions | 16 (12 Power + 4 Signal) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.125" (3.18mm) |
| Operating Temperature | -40°C ~ 105°C |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
