Step1: Product

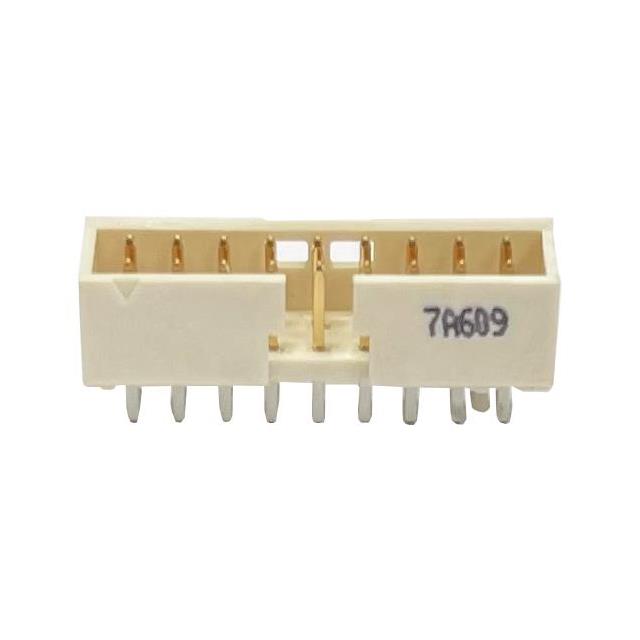

BellWether 70007-5A34
Image shown is a representation only
Manufacturer
Manufacturer No
70007-5A34
Packaging
Tape & Reel (TR)
Description
HEADER 18POS PH 2.00MM VERT TH
Detailed Description
Connector Header Through Hole 18 position
Datasheet
Mfr
BellWether
Style
Board to Cable/Wire
Features
Board Guide
Packaging
Tape & Reel (TR)
Shrouding
Unshrouded
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Locking Ramp
Number of Rows
2
Voltage Rating
200V
Contact Material
Copper Alloy
Insulation Color
Natural
Insulation Height
0.228" (5.80mm)
Insulation Material
Thermoplastic, Glass Filled
Number of Positions
18
Contact Finish - Post
Gold
Contact Length - Post
0.079" (2.00mm)
Current Rating (Amps)
2A
Operating Temperature
-55°C ~ 105°C
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
15.0µin (0.38µm)
| Attribute | Value |
|---|---|
| Mfr | BellWether |
| Style | Board to Cable/Wire |
| Features | Board Guide |
| Packaging | Tape & Reel (TR) |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Locking Ramp |
| Number of Rows | 2 |
| Voltage Rating | 200V |
| Contact Material | Copper Alloy |
| Insulation Color | Natural |
| Insulation Height | 0.228" (5.80mm) |
| Insulation Material | Thermoplastic, Glass Filled |
| Number of Positions | 18 |
| Contact Finish - Post | Gold |
| Contact Length - Post | 0.079" (2.00mm) |
| Current Rating (Amps) | 2A |
| Operating Temperature | -55°C ~ 105°C |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
