Step1: Product
ATTEND Technology 123A-58B01

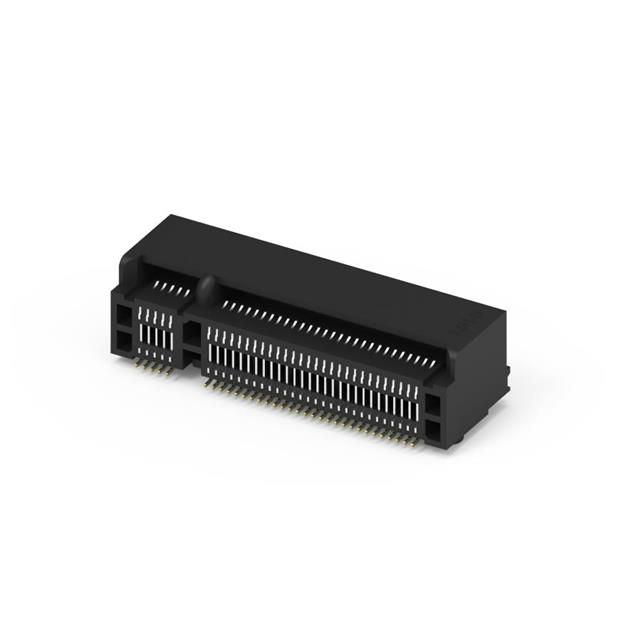

Image shown is a representation only
Manufacturer
Manufacturer No
123A-58B01
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CONN M.2 (NGFF) SOCKET 67POS
Detailed Description
67 Position Female Connector M.2 (NGFF) Mini Card Gold 0.020" (0.50mm) Black
DataSheet
Color
Black
Pitch
0.020" (0.50mm)
Gender
Female
Features
Board Guide, Solder Retention
Read Out
Dual
Card Type
M.2 (NGFF) Mini Card
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Termination
Solder
Manufacturer
ATTEND Technology
Mounting Type
Surface Mount, Right Angle
Card Thickness
0.031" (0.79mm)
Contact Finish
Gold
Number of Rows
2
Contact Material
Copper Alloy
Termination Rows
2
Number of Positions
67
Material - Insulation
Thermoplastic
Operating Temperature
-40°C ~ 85°C
Contact Finish Thickness
Flash
| Attribute | Value |
|---|---|
| Color | Black |
| Pitch | 0.020" (0.50mm) |
| Gender | Female |
| Features | Board Guide, Solder Retention |
| Read Out | Dual |
| Card Type | M.2 (NGFF) Mini Card |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | ATTEND Technology |
| Mounting Type | Surface Mount, Right Angle |
| Card Thickness | 0.031" (0.79mm) |
| Contact Finish | Gold |
| Number of Rows | 2 |
| Contact Material | Copper Alloy |
| Termination Rows | 2 |
| Number of Positions | 67 |
| Material - Insulation | Thermoplastic |
| Operating Temperature | -40°C ~ 85°C |
| Contact Finish Thickness | Flash |
