Step1: Product

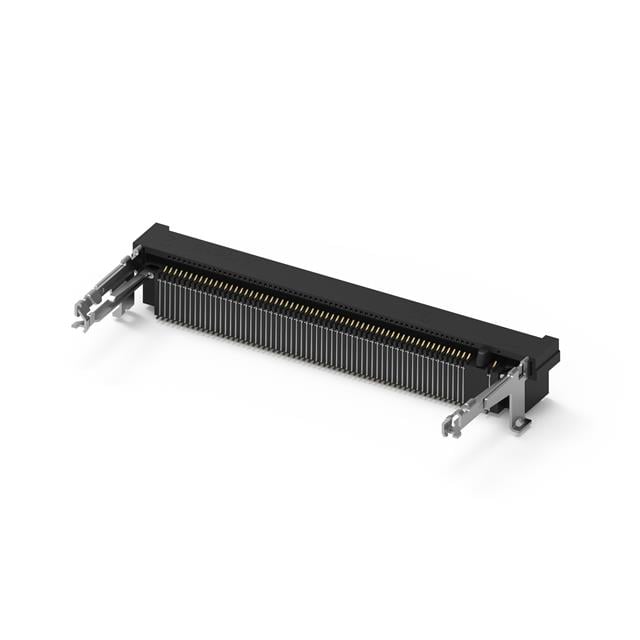

ATTEND Technology 114B-92B00-R02
Image shown is a representation only
Manufacturer
Manufacturer No
114B-92B00-R02
Packaging
Tray
Description
CONN MINI PCI SOCKET 124POS
Detailed Description
124 Position Female Connector Mini PCI Card Gold 0.031" (0.80mm) Black
DataSheet
Color
Black
Pitch
0.031" (0.80mm)
Gender
Female
Features
Board Guide, Solder Retention
Read Out
Dual
Card Type
Mini PCI Card
Packaging
Tray
Part Status
Active
Termination
Solder
Manufacturer
ATTEND Technology
Mounting Type
Surface Mount, Right Angle
Card Thickness
0.039" (1.00mm)
Contact Finish
Gold
Number of Rows
2
Contact Material
Phosphor Bronze Alloy
Termination Rows
2
Number of Positions
124
Material - Insulation
Liquid Crystal Polymer (LCP)
Operating Temperature
-40°C ~ 90°C
Contact Finish Thickness
3.00µin (0.076µm)
| Attribute | Value |
|---|---|
| Color | Black |
| Pitch | 0.031" (0.80mm) |
| Gender | Female |
| Features | Board Guide, Solder Retention |
| Read Out | Dual |
| Card Type | Mini PCI Card |
| Packaging | Tray |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | ATTEND Technology |
| Mounting Type | Surface Mount, Right Angle |
| Card Thickness | 0.039" (1.00mm) |
| Contact Finish | Gold |
| Number of Rows | 2 |
| Contact Material | Phosphor Bronze Alloy |
| Termination Rows | 2 |
| Number of Positions | 124 |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Operating Temperature | -40°C ~ 90°C |
| Contact Finish Thickness | 3.00µin (0.076µm) |
