Step1: Product

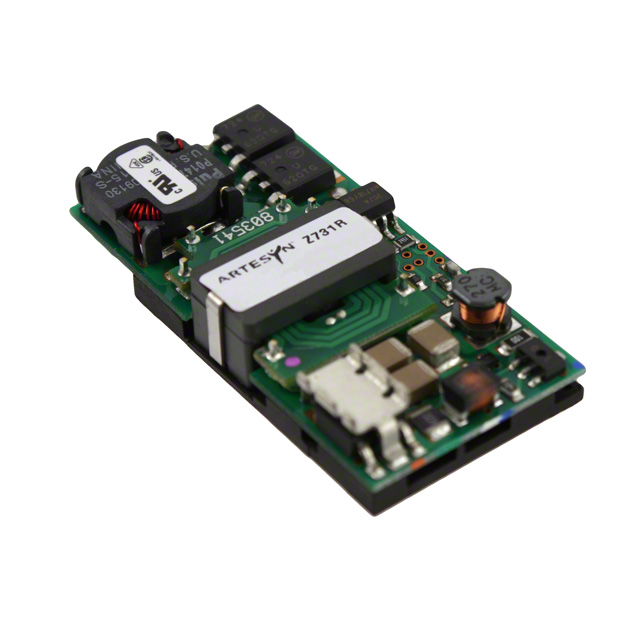

ARTESYN / Advanced Energy CXA10-48S12J
Image shown is a representation only
Manufacturer
Manufacturer No
CXA10-48S12J
Package
6-DIP Module
Packaging
Tray
Description
DC DC CONVERTER 12V 10W
Detailed Description
Isolated Module DC DC Converter 1 Output 12V 830mA 18V - 75V Input
DataSheet
Mfr
ARTESYN / Advanced Energy
Type
Isolated Module
Series
CXA10 (10W)
Features
OVP, SCP, UVLO
Packaging
Tray
Efficiency
83%
Part Status
Obsolete
Applications
ITE (Commercial)
Mounting Type
Through Hole
Power (Watts)
10 W
Package / Case
6-DIP Module
Size / Dimension
2.00" L x 1.00" W x 0.39" H (50.8mm x 25.4mm x 10.0mm)
Number of Outputs
1
Voltage - Output 1
12V
Voltage - Isolation
1.5 kV
Operating Temperature
-40°C ~ 70°C
Voltage - Input (Max)
75V
Voltage - Input (Min)
18V
Current - Output (Max)
830mA
| Attribute | Value |
|---|---|
| Mfr | ARTESYN / Advanced Energy |
| Type | Isolated Module |
| Series | CXA10 (10W) |
| Features | OVP, SCP, UVLO |
| Packaging | Tray |
| Efficiency | 83% |
| Part Status | Obsolete |
| Applications | ITE (Commercial) |
| Mounting Type | Through Hole |
| Power (Watts) | 10 W |
| Package / Case | 6-DIP Module |
| Size / Dimension | 2.00" L x 1.00" W x 0.39" H (50.8mm x 25.4mm x 10.0mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | 12V |
| Voltage - Isolation | 1.5 kV |
| Operating Temperature | -40°C ~ 70°C |
| Voltage - Input (Max) | 75V |
| Voltage - Input (Min) | 18V |
| Current - Output (Max) | 830mA |
