Step1: Product

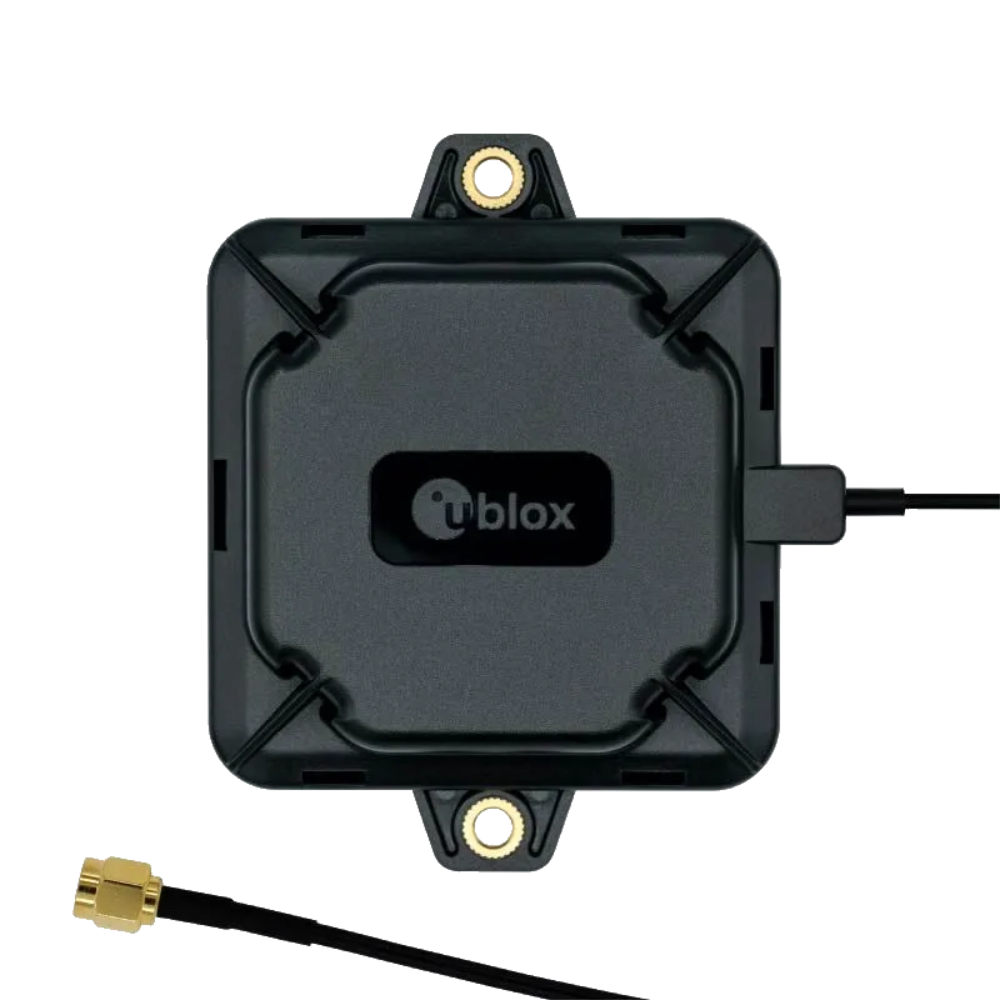

ARDUSIMPLE AS-ANT3B-ANNMB2-L1256-50SMA
Image shown is a representation only
Manufacturer
Manufacturer No
AS-ANT3B-ANNMB2-L1256-50SMA
Packaging
Box
Description
u-blox ANN-MB2-00 Tripleband GNS
Detailed Description
RF ANTENNA BeiDou, Galileo, GLONASS, GPS, QZSS Module SMA Male Magnetic
DataSheet
Gain
4.5dBi
VSWR
2
Features
Cable - 5m, LNA
Packaging
Box
Part Status
Active
Termination
SMA Male
Antenna Type
Module
Applications
BeiDou, Galileo, GLONASS, GPS, QZSS
Manufacturer
ARDUSIMPLE
Mounting Type
Magnetic
Frequency Group
UHF (1GHz ~ 2GHz)
Frequency Range
1.166GHz ~ 1.285GHz, 1.535GHz ~ 1.602GHz
Number of Bands
2
Ingress Protection
IP67
RF Family/Standard
Navigation
Frequency (Center/Band)
1.225GHz, 1.568GHz
| Attribute | Value |
|---|---|
| Gain | 4.5dBi |
| VSWR | 2 |
| Features | Cable - 5m, LNA |
| Packaging | Box |
| Part Status | Active |
| Termination | SMA Male |
| Antenna Type | Module |
| Applications | BeiDou, Galileo, GLONASS, GPS, QZSS |
| Manufacturer | ARDUSIMPLE |
| Mounting Type | Magnetic |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency Range | 1.166GHz ~ 1.285GHz, 1.535GHz ~ 1.602GHz |
| Number of Bands | 2 |
| Ingress Protection | IP67 |
| RF Family/Standard | Navigation |
| Frequency (Center/Band) | 1.225GHz, 1.568GHz |
