Step1: Product

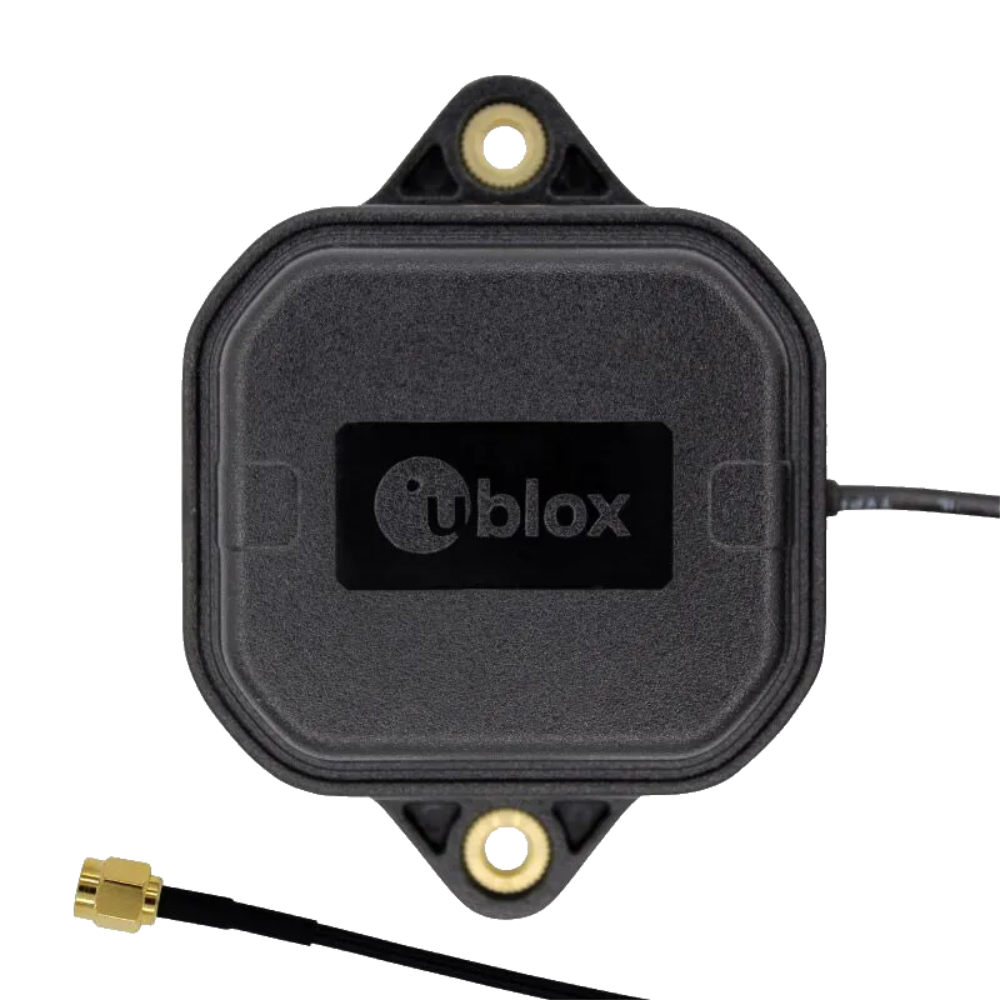

ARDUSIMPLE AS-ANT2B-ANN-L1L2-50SMA-00
Image shown is a representation only
Manufacturer
Manufacturer No
AS-ANT2B-ANN-L1L2-50SMA-00
Packaging
Box
Description
GNSS MULTIBAND ANTENNA ANN-MB
Detailed Description
RF ANTENNA GNSS Module SMA Chassis Mount
DataSheet
Gain
28dB
VSWR
2
Features
Cable - 5m
Packaging
Box
Part Status
Active
Termination
SMA
Antenna Type
Module
Applications
GNSS
Manufacturer
ARDUSIMPLE
Mounting Type
Chassis Mount
Frequency Group
UHF (1GHz ~ 2GHz)
Frequency Range
1.197GHz ~ 1.249GHz, 1.559GHz ~ 1.606GHz
Number of Bands
2
Ingress Protection
IP67
RF Family/Standard
Navigation
Frequency (Center/Band)
1.223GHz, 1.5825GHz
| Attribute | Value |
|---|---|
| Gain | 28dB |
| VSWR | 2 |
| Features | Cable - 5m |
| Packaging | Box |
| Part Status | Active |
| Termination | SMA |
| Antenna Type | Module |
| Applications | GNSS |
| Manufacturer | ARDUSIMPLE |
| Mounting Type | Chassis Mount |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency Range | 1.197GHz ~ 1.249GHz, 1.559GHz ~ 1.606GHz |
| Number of Bands | 2 |
| Ingress Protection | IP67 |
| RF Family/Standard | Navigation |
| Frequency (Center/Band) | 1.223GHz, 1.5825GHz |
