Step1: Product

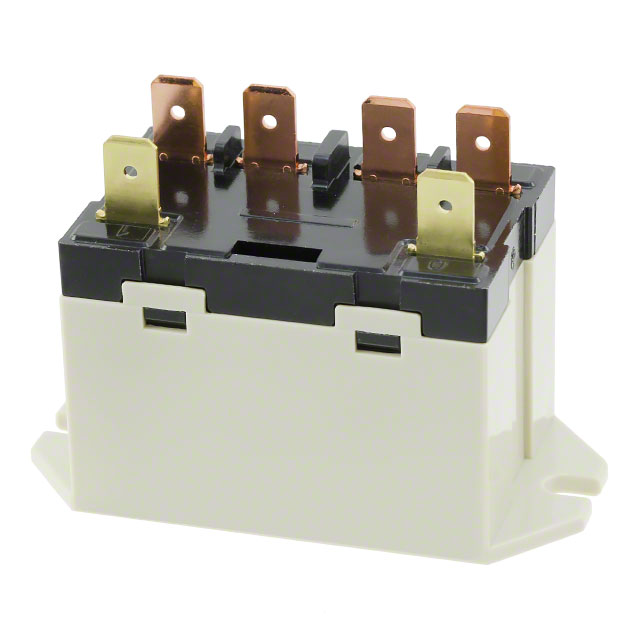

Aratas America LLC G7L-2A-TUBJ-80-CB DC24
Image shown is a representation only
Manufacturer
Manufacturer No
G7L-2A-TUBJ-80-CB DC24
Packaging
Bulk
Description
RELAY GEN PURPOSE DPST 25A 24V
Detailed Description
General Purpose Relay DPST-NO (2 Form A) 24VDC Coil Chassis Mount
DataSheet
Mfr
Aratas America LLC
Series
G7L
Features
Test Button
Coil Type
Non Latching
Packaging
Bulk
Relay Type
General Purpose
Part Status
Active
Coil Current
79 mA
Coil Voltage
24VDC
Contact Form
DPST-NO (2 Form A)
Operate Time
30 ms
Release Time
30 ms
Mounting Type
Chassis Mount
Approval Agency
CSA, TUV, UR
Coil Insulation
Class B
Coil Resistance
303 Ohms
Contact Material
Silver Alloy
Switching Voltage
250VAC - Max
Termination Style
Quick Connect - 0.250" (6.3mm)
Base Product Number
G7L-2A
Load - Max Switching
6250VA
Must Operate Voltage
18 VDC
Must Release Voltage
3.6 VDC
Operating Temperature
-25°C ~ 60°C
Contact Rating (Current)
25 A
| Attribute | Value |
|---|---|
| Mfr | Aratas America LLC |
| Series | G7L |
| Features | Test Button |
| Coil Type | Non Latching |
| Packaging | Bulk |
| Relay Type | General Purpose |
| Part Status | Active |
| Coil Current | 79 mA |
| Coil Voltage | 24VDC |
| Contact Form | DPST-NO (2 Form A) |
| Operate Time | 30 ms |
| Release Time | 30 ms |
| Mounting Type | Chassis Mount |
| Approval Agency | CSA, TUV, UR |
| Coil Insulation | Class B |
| Coil Resistance | 303 Ohms |
| Contact Material | Silver Alloy |
| Switching Voltage | 250VAC - Max |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Base Product Number | G7L-2A |
| Load - Max Switching | 6250VA |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 3.6 VDC |
| Operating Temperature | -25°C ~ 60°C |
| Contact Rating (Current) | 25 A |
