Step1: Product

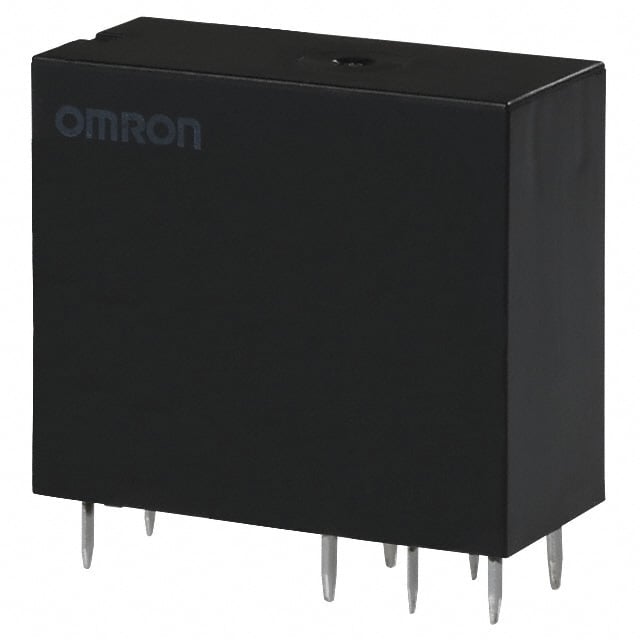

Aratas America LLC G2R-24-H DC6
Image shown is a representation only
Manufacturer
Manufacturer No
G2R-24-H DC6
Packaging
Tray
Description
RELAY GEN PURPOSE DPDT 3A 6V
Detailed Description
General Purpose Relay DPDT (2 Form C) 6VDC Coil Through Hole
DataSheet
Mfr
Aratas America LLC
Series
G2R
Coil Type
Non Latching
Packaging
Tray
Relay Type
General Purpose
Part Status
Obsolete
Seal Rating
Sealed - Fully
Coil Current
60 mA
Coil Voltage
6VDC
Contact Form
DPDT (2 Form C)
Operate Time
15 ms
Release Time
5 ms
Mounting Type
Through Hole
Approval Agency
CSA, TUV, UR, VDE
Coil Resistance
100 Ohms
Contact Material
Silver Alloy
Switching Voltage
380VAC, 125VDC - Max
Termination Style
PC Pin
Base Product Number
G2R-24
Load - Max Switching
1140VA, 375W
Must Operate Voltage
4.2 VDC
Must Release Voltage
0.9 VDC
Operating Temperature
-40°C ~ 70°C
Contact Rating (Current)
3 A
| Attribute | Value |
|---|---|
| Mfr | Aratas America LLC |
| Series | G2R |
| Coil Type | Non Latching |
| Packaging | Tray |
| Relay Type | General Purpose |
| Part Status | Obsolete |
| Seal Rating | Sealed - Fully |
| Coil Current | 60 mA |
| Coil Voltage | 6VDC |
| Contact Form | DPDT (2 Form C) |
| Operate Time | 15 ms |
| Release Time | 5 ms |
| Mounting Type | Through Hole |
| Approval Agency | CSA, TUV, UR, VDE |
| Coil Resistance | 100 Ohms |
| Contact Material | Silver Alloy |
| Switching Voltage | 380VAC, 125VDC - Max |
| Termination Style | PC Pin |
| Base Product Number | G2R-24 |
| Load - Max Switching | 1140VA, 375W |
| Must Operate Voltage | 4.2 VDC |
| Must Release Voltage | 0.9 VDC |
| Operating Temperature | -40°C ~ 70°C |
| Contact Rating (Current) | 3 A |
