Step1: Product

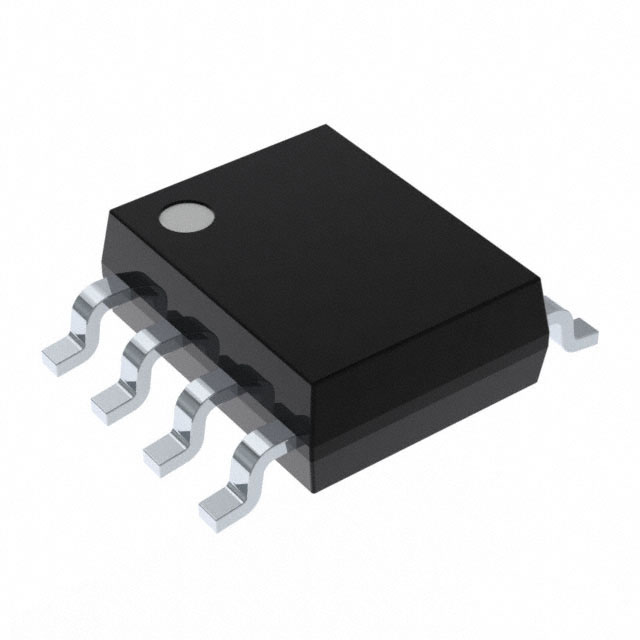

Analog Power Inc. AM4541C
Image shown is a representation only
Manufacturer
Manufacturer No
AM4541C
Package
PowerPAK® SO-8
Packaging
Bulk
Description
MOSFET N/P-CH 40V 5.8A SOIC-8
Detailed Description
Mosfet Array 40V 5.8A (Ta), 3.9A (Ta) 2.1W (Ta) Surface Mount 8-SO
Datasheet
Packaging
Bulk
Technology
MOSFET (Metal Oxide)
Power - Max
2.1W (Ta)
Manufacturer
Analog Power Inc.
Configuration
N and P-Channel
Mounting Type
Surface Mount
Package / Case
PowerPAK® SO-8
Vgs(th) (Max) @ Id
1V @ 250µA
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
42mOhm @ 5.3A, 10V, 90mOhm @ 3.6A, 10V
Supplier Device Package
8-SO
Gate Charge (Qg) (Max) @ Vgs
3.6nC @ 10V, 5.8nC @ 10V
Drain to Source Voltage (Vdss)
40V
Input Capacitance (Ciss) (Max) @ Vds
287pF @ 15V, 384pF @ 15V
Current - Continuous Drain (Id) @ 25°C
5.8A (Ta), 3.9A (Ta)
| Attribute | Value |
|---|---|
| Packaging | Bulk |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 2.1W (Ta) |
| Manufacturer | Analog Power Inc. |
| Configuration | N and P-Channel |
| Mounting Type | Surface Mount |
| Package / Case | PowerPAK® SO-8 |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 42mOhm @ 5.3A, 10V, 90mOhm @ 3.6A, 10V |
| Supplier Device Package | 8-SO |
| Gate Charge (Qg) (Max) @ Vgs | 3.6nC @ 10V, 5.8nC @ 10V |
| Drain to Source Voltage (Vdss) | 40V |
| Input Capacitance (Ciss) (Max) @ Vds | 287pF @ 15V, 384pF @ 15V |
| Current - Continuous Drain (Id) @ 25°C | 5.8A (Ta), 3.9A (Ta) |
