Step1: Product
Analog Devices Inc. LTC2634HUD-HZ12#PBF

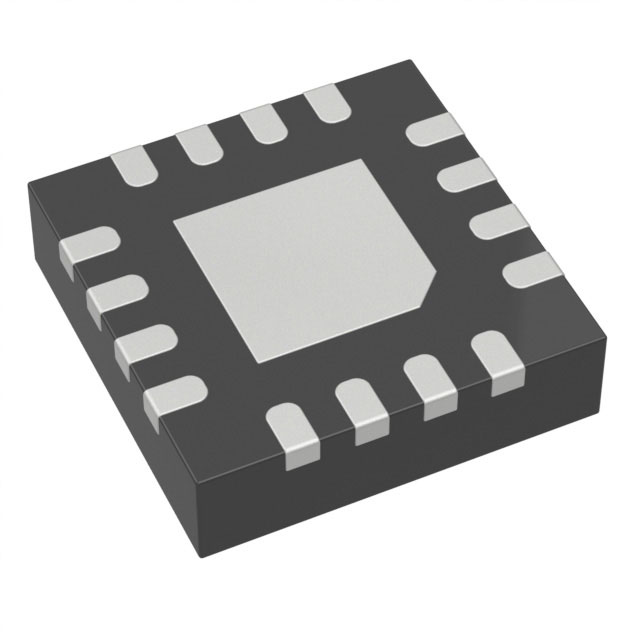

Image shown is a representation only
Manufacturer
Manufacturer No
LTC2634HUD-HZ12#PBF
Package
16-WFQFN Exposed Pad
Packaging
Tube
Description
IC DAC 12BIT 16-QFN
Detailed Description
12 Bit Digital to Analog Converter 4 16-QFN (3x3)
DataSheet
Packaging
Tube
Output Type
Voltage - Buffered
Part Status
Active
Manufacturer
Analog Devices Inc.
INL/DNL (LSB)
±1, ±1 (Max)
Mounting Type
Surface Mount
Settling Time
4.8µs (Typ)
Data Interface
SPI
Number of Bits
12
Package / Case
16-WFQFN Exposed Pad
Reference Type
External, Internal
Base Product Number
LTC2634
Differential Output
No
Operating Temperature
-40°C ~ 125°C
Supplier Device Package
16-QFN (3x3)
Number of D/A Converters
4
Voltage - Supply, Analog
5V
Voltage - Supply, Digital
5V
| Attribute | Value |
|---|---|
| Packaging | Tube |
| Output Type | Voltage - Buffered |
| Part Status | Active |
| Manufacturer | Analog Devices Inc. |
| INL/DNL (LSB) | ±1, ±1 (Max) |
| Mounting Type | Surface Mount |
| Settling Time | 4.8µs (Typ) |
| Data Interface | SPI |
| Number of Bits | 12 |
| Package / Case | 16-WFQFN Exposed Pad |
| Reference Type | External, Internal |
| Base Product Number | LTC2634 |
| Differential Output | No |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 16-QFN (3x3) |
| Number of D/A Converters | 4 |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
