Analog Devices Inc. AD5420AREZ-REEL7

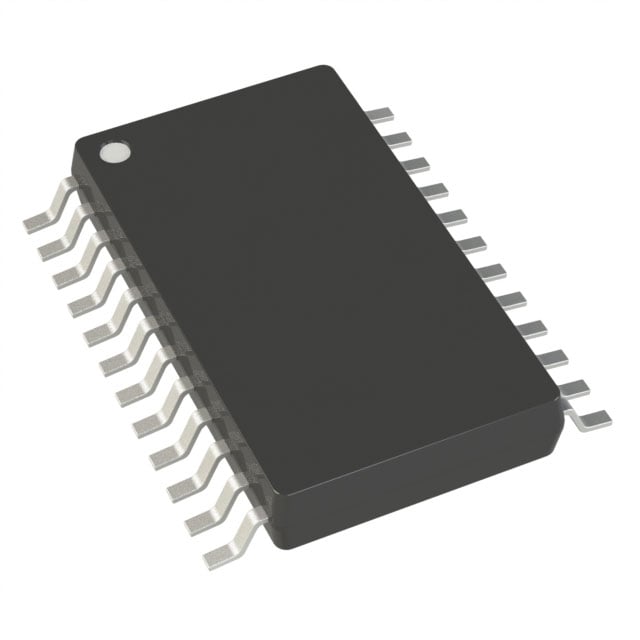

Image shown is a representation only
Manufacturer
Manufacturer No
AD5420AREZ-REEL7
Quantity
2096
Availability
In Stock
Package
24-TSSOP (0.173", 4.40mm Width) Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
IC DAC 16BIT 24-TSSOP-EP
Detailed Description
16 Bit Digital to Analog Converter 1 24-TSSOP-EP
DataSheet
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Output Type
Current - Buffered
Part Status
Active
Architecture
R-2R
Manufacturer
Analog Devices Inc.
INL/DNL (LSB)
-, ±1 (Max)
Mounting Type
Surface Mount
Settling Time
40µs
Data Interface
SPI, DSP
Number of Bits
16
Package / Case
24-TSSOP (0.173", 4.40mm Width) Exposed Pad
Reference Type
External, Internal
Base Product Number
AD5420
Differential Output
No
Operating Temperature
-40°C ~ 85°C
Supplier Device Package
24-TSSOP-EP
Number of D/A Converters
1
Voltage - Supply, Analog
10.8V ~ 40V
Voltage - Supply, Digital
2.7V ~ 5.5V
| Attribute | Value |
|---|---|
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Output Type | Current - Buffered |
| Part Status | Active |
| Architecture | R-2R |
| Manufacturer | Analog Devices Inc. |
| INL/DNL (LSB) | -, ±1 (Max) |
| Mounting Type | Surface Mount |
| Settling Time | 40µs |
| Data Interface | SPI, DSP |
| Number of Bits | 16 |
| Package / Case | 24-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Reference Type | External, Internal |
| Base Product Number | AD5420 |
| Differential Output | No |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 24-TSSOP-EP |
| Number of D/A Converters | 1 |
| Voltage - Supply, Analog | 10.8V ~ 40V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
