Analog Devices Inc./Maxim Integrated TMC2130-LA

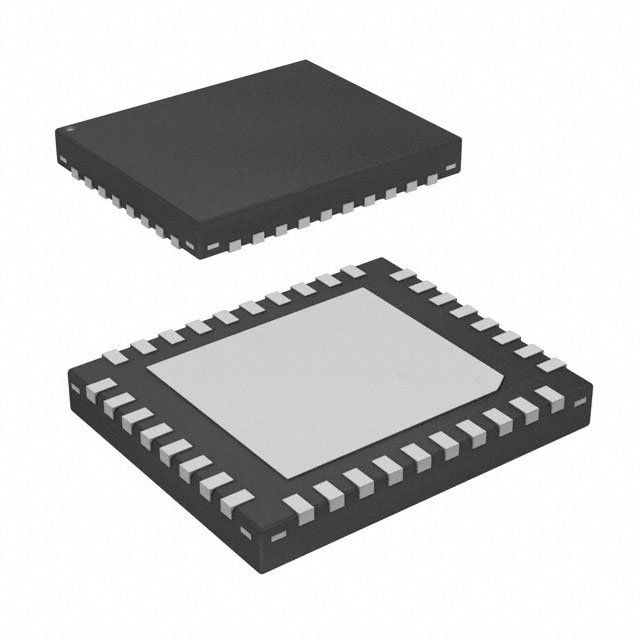

Image shown is a representation only
Manufacturer
Manufacturer No
TMC2130-LA
Package
36-VFQFN Exposed Pad
Packaging
Tube
Description
STEPPER MOTOR DRIVER IC, SPI, ST
Detailed Description
Bipolar Motor Driver Power MOSFET SPI, Step/Direction 36-QFN (5x6)
DataSheet
Series
StealthChop™
Function
Driver - Fully Integrated, Control and Power Stage
Interface
SPI, Step/Direction
Packaging
Tube
Technology
Power MOSFET
Part Status
Active
Applications
General Purpose
Manufacturer
Analog Devices Inc./Maxim Integrated
Mounting Type
Surface Mount
Package / Case
36-VFQFN Exposed Pad
Voltage - Load
5.5V ~ 46V
Step Resolution
1 ~ 1/256
Current - Output
1.2A
Voltage - Supply
5.5V ~ 46V
Base Product Number
TMC2130
Motor Type - Stepper
Bipolar
Output Configuration
Half Bridge (2)
Operating Temperature
-40°C ~ 125°C (TJ)
Supplier Device Package
36-QFN (5x6)
| Attribute | Value |
|---|---|
| Series | StealthChop™ |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Interface | SPI, Step/Direction |
| Packaging | Tube |
| Technology | Power MOSFET |
| Part Status | Active |
| Applications | General Purpose |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Mounting Type | Surface Mount |
| Package / Case | 36-VFQFN Exposed Pad |
| Voltage - Load | 5.5V ~ 46V |
| Step Resolution | 1 ~ 1/256 |
| Current - Output | 1.2A |
| Voltage - Supply | 5.5V ~ 46V |
| Base Product Number | TMC2130 |
| Motor Type - Stepper | Bipolar |
| Output Configuration | Half Bridge (2) |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Supplier Device Package | 36-QFN (5x6) |
