Analog Devices Inc./Maxim Integrated TMC2225-SA-T

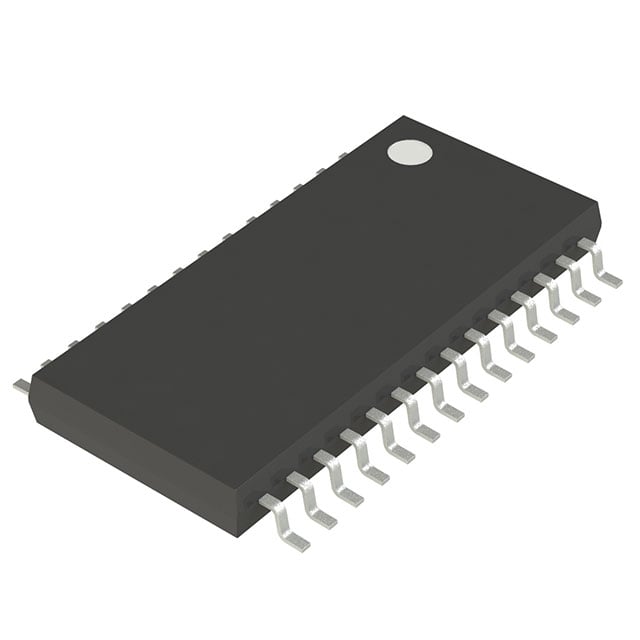

Image shown is a representation only
Manufacturer
Manufacturer No
TMC2225-SA-T
Quantity
2313
Availability
In Stock
Package
28-PowerTSSOP (0.173", 4.40mm Width)
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
IC MTR DRV 4.75-36V HTSSOP28
Detailed Description
Bipolar Motor Driver Power MOSFET SPI, Step/Direction, UART 28-HTSSOP
DataSheet
Function
Driver - Fully Integrated, Control and Power Stage
Interface
SPI, Step/Direction, UART
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Technology
Power MOSFET
Part Status
Active
Applications
General Purpose
Manufacturer
Analog Devices Inc./Maxim Integrated
Mounting Type
Surface Mount
Package / Case
28-PowerTSSOP (0.173", 4.40mm Width)
Voltage - Load
5.5V ~ 36V
Step Resolution
>256 Microsteps
Current - Output
2A
Voltage - Supply
3V ~ 5.25V
Base Product Number
TMC2225
Motor Type - AC, DC
Universal
Motor Type - Stepper
Bipolar
Output Configuration
SPI, Step/Direction
Operating Temperature
-40°C ~ 125°C (TJ)
Supplier Device Package
28-HTSSOP
| Attribute | Value |
|---|---|
| Function | Driver - Fully Integrated, Control and Power Stage |
| Interface | SPI, Step/Direction, UART |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Technology | Power MOSFET |
| Part Status | Active |
| Applications | General Purpose |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Mounting Type | Surface Mount |
| Package / Case | 28-PowerTSSOP (0.173", 4.40mm Width) |
| Voltage - Load | 5.5V ~ 36V |
| Step Resolution | >256 Microsteps |
| Current - Output | 2A |
| Voltage - Supply | 3V ~ 5.25V |
| Base Product Number | TMC2225 |
| Motor Type - AC, DC | Universal |
| Motor Type - Stepper | Bipolar |
| Output Configuration | SPI, Step/Direction |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Supplier Device Package | 28-HTSSOP |
