Step1: Product
Analog Devices Inc./Maxim Integrated MAX22201ATC+T

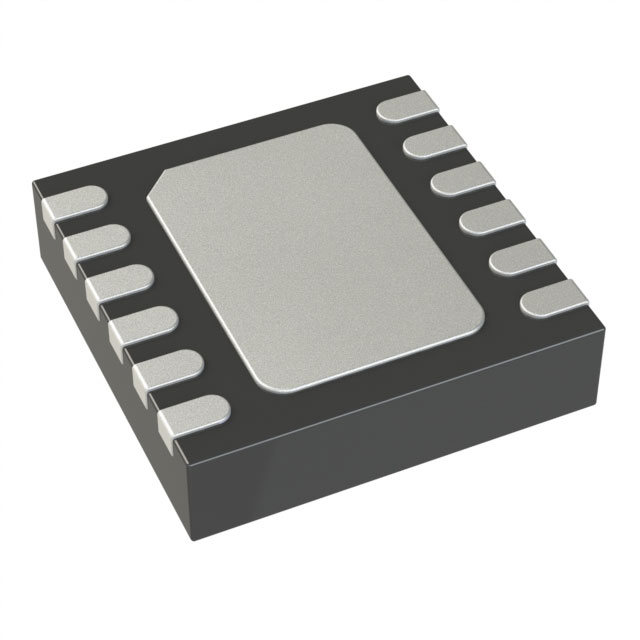

Image shown is a representation only
Manufacturer
Manufacturer No
MAX22201ATC+T
Quantity
27
Availability
In Stock
Package
12-WFDFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
36V BRUSHED DC MOTOR DRIVER WITH
Detailed Description
Bipolar Motor Driver NMOS PWM 12-TDFN (3x3)
DataSheet
Function
Driver - Fully Integrated, Control and Power Stage
Interface
PWM
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Technology
NMOS
Part Status
Active
Applications
General Purpose
Manufacturer
Analog Devices Inc./Maxim Integrated
Mounting Type
Surface Mount
Package / Case
12-WFDFN Exposed Pad
Current - Output
3.5A
Voltage - Supply
3V ~ 36V
Base Product Number
MAX22201
Motor Type - AC, DC
Brushed DC
Motor Type - Stepper
Bipolar
Output Configuration
Half Bridge (2)
Operating Temperature
-40°C ~ 125°C (TA)
Supplier Device Package
12-TDFN (3x3)
| Attribute | Value |
|---|---|
| Function | Driver - Fully Integrated, Control and Power Stage |
| Interface | PWM |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Technology | NMOS |
| Part Status | Active |
| Applications | General Purpose |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Mounting Type | Surface Mount |
| Package / Case | 12-WFDFN Exposed Pad |
| Current - Output | 3.5A |
| Voltage - Supply | 3V ~ 36V |
| Base Product Number | MAX22201 |
| Motor Type - AC, DC | Brushed DC |
| Motor Type - Stepper | Bipolar |
| Output Configuration | Half Bridge (2) |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Supplier Device Package | 12-TDFN (3x3) |
