Step1: Product

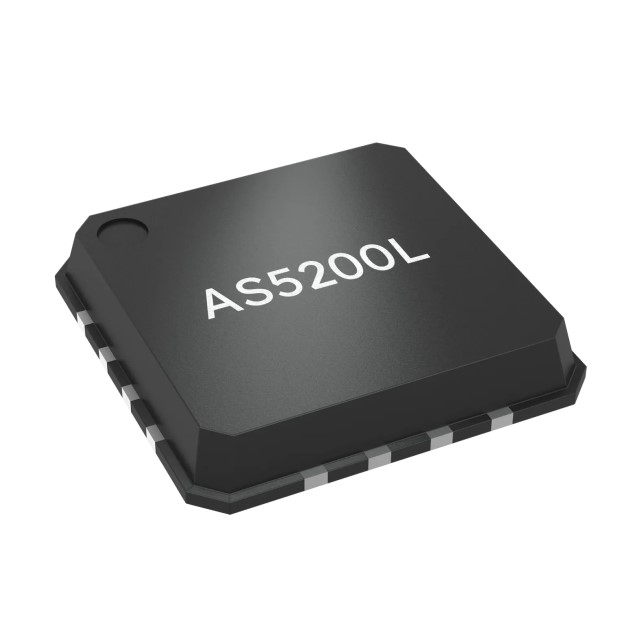

ams-OSRAM USA INC. AS5200L-AMFT MLF16 LF T&RDP
Image shown is a representation only
Manufacturer
Manufacturer No
AS5200L-AMFT MLF16 LF T&RDP
Package
16-VQFN Exposed Pad
Packaging
Tape & Reel (TR)
Description
AS5200L-AMFT MLF16 LF T&RDP
Detailed Description
Hall Effect Sensor Rotary Position External Magnet, Not Included Gull Wing
DataSheet
Grade
Automotive
Output
I2C, PWM
Packaging
Tape & Reel (TR)
Technology
Hall Effect
Part Status
Active
Manufacturer
ams-OSRAM USA INC.
Actuator Type
External Magnet, Not Included
For Measuring
Rotary Position
Mounting Type
Surface Mount
Qualification
AEC-Q100
Package / Case
16-VQFN Exposed Pad
Voltage - Supply
3V ~ 3.6V, 4.5V ~ 5.5V
Termination Style
Gull Wing
Base Product Number
AS5200
Operating Temperature
-40°C ~ 125°C
Supplier Device Package
16-MLFP (5x5)
Rotation Angle - Electrical, Mechanical
0° ~ 360°, Continuous
| Attribute | Value |
|---|---|
| Grade | Automotive |
| Output | I2C, PWM |
| Packaging | Tape & Reel (TR) |
| Technology | Hall Effect |
| Part Status | Active |
| Manufacturer | ams-OSRAM USA INC. |
| Actuator Type | External Magnet, Not Included |
| For Measuring | Rotary Position |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q100 |
| Package / Case | 16-VQFN Exposed Pad |
| Voltage - Supply | 3V ~ 3.6V, 4.5V ~ 5.5V |
| Termination Style | Gull Wing |
| Base Product Number | AS5200 |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 16-MLFP (5x5) |
| Rotation Angle - Electrical, Mechanical | 0° ~ 360°, Continuous |
