Step1: Product
ams-OSRAM USA INC. AS5715R-ZTSM TSSOP14 LF T&RDP

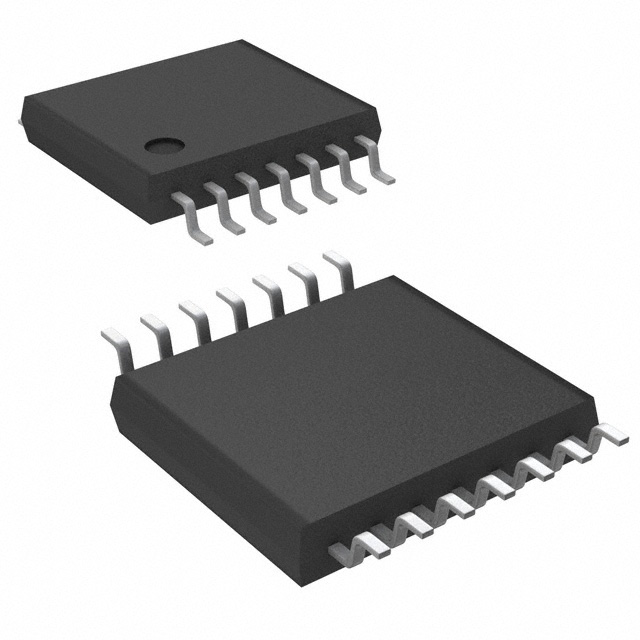

Image shown is a representation only
Manufacturer
Manufacturer No
AS5715R-ZTSM TSSOP14 LF T&RDP
Package
14-TSSOP (0.173", 4.40mm Width)
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
AS5715R-ZTSM TSSOP14 LF T&RDP
Detailed Description
Inductive Sensor Rotary Position Inductive Target SMD (SMT) Tab
DataSheet
Grade
Automotive
Output
I2C, PWM
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Technology
Inductive
Part Status
Active
Manufacturer
ams-OSRAM USA INC.
Actuator Type
Inductive Target
For Measuring
Rotary Position
Mounting Type
Surface Mount
Qualification
AEC-Q100
Package / Case
14-TSSOP (0.173", 4.40mm Width)
Voltage - Supply
4.5V ~ 5.5V
Termination Style
SMD (SMT) Tab
Operating Temperature
-40°C ~ 160°C (TA)
Supplier Device Package
14-TSSOP
Rotation Angle - Electrical, Mechanical
0° ~ 360°, Continuous
| Attribute | Value |
|---|---|
| Grade | Automotive |
| Output | I2C, PWM |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Technology | Inductive |
| Part Status | Active |
| Manufacturer | ams-OSRAM USA INC. |
| Actuator Type | Inductive Target |
| For Measuring | Rotary Position |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q100 |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Termination Style | SMD (SMT) Tab |
| Operating Temperature | -40°C ~ 160°C (TA) |
| Supplier Device Package | 14-TSSOP |
| Rotation Angle - Electrical, Mechanical | 0° ~ 360°, Continuous |
