ams-OSRAM USA INC. AS5115F-HSSP SSOP16 LF T&RDP

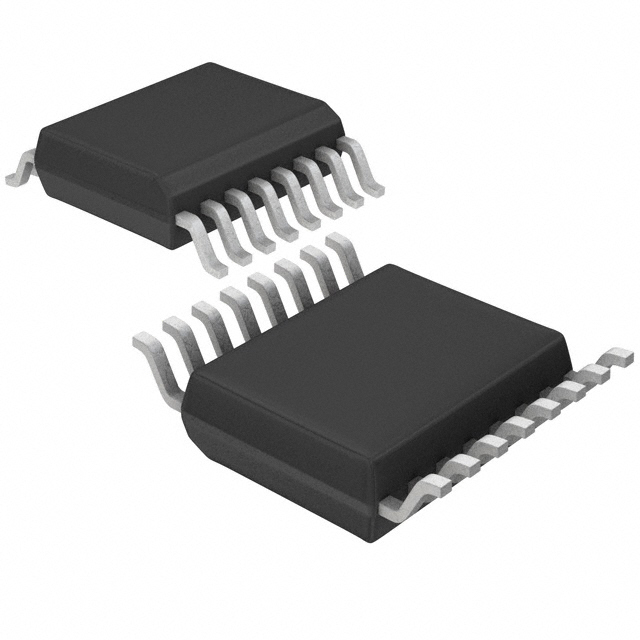

Image shown is a representation only
Manufacturer
Manufacturer No
AS5115F-HSSP SSOP16 LF T&RDP
Package
16-SSOP (0.209", 5.30mm Width)
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
SENSOR ANGLE 360DEG SMD
Detailed Description
Hall Effect Sensor Angle External Magnet, Not Included SMD (SMT) Tab
DataSheet
Grade
Automotive
Output
Analog Voltage
Linearity
±1%
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Technology
Hall Effect
Part Status
Not For New Designs
Manufacturer
ams-OSRAM USA INC.
Actuator Type
External Magnet, Not Included
For Measuring
Angle
Mounting Type
Surface Mount
Output Signal
Cosine, Sine
Qualification
AEC-Q100
Package / Case
16-SSOP (0.209", 5.30mm Width)
Voltage - Supply
4.5V ~ 5.5V
Termination Style
SMD (SMT) Tab
Base Product Number
AS5115
Operating Temperature
-40°C ~ 150°C
Supplier Device Package
16-SSOP
Rotation Angle - Electrical, Mechanical
0° ~ 360°, Continuous
| Attribute | Value |
|---|---|
| Grade | Automotive |
| Output | Analog Voltage |
| Linearity | ±1% |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Technology | Hall Effect |
| Part Status | Not For New Designs |
| Manufacturer | ams-OSRAM USA INC. |
| Actuator Type | External Magnet, Not Included |
| For Measuring | Angle |
| Mounting Type | Surface Mount |
| Output Signal | Cosine, Sine |
| Qualification | AEC-Q100 |
| Package / Case | 16-SSOP (0.209", 5.30mm Width) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Termination Style | SMD (SMT) Tab |
| Base Product Number | AS5115 |
| Operating Temperature | -40°C ~ 150°C |
| Supplier Device Package | 16-SSOP |
| Rotation Angle - Electrical, Mechanical | 0° ~ 360°, Continuous |
