Step1: Product
Amphenol Times Microwave Systems TC-600-NF-BH

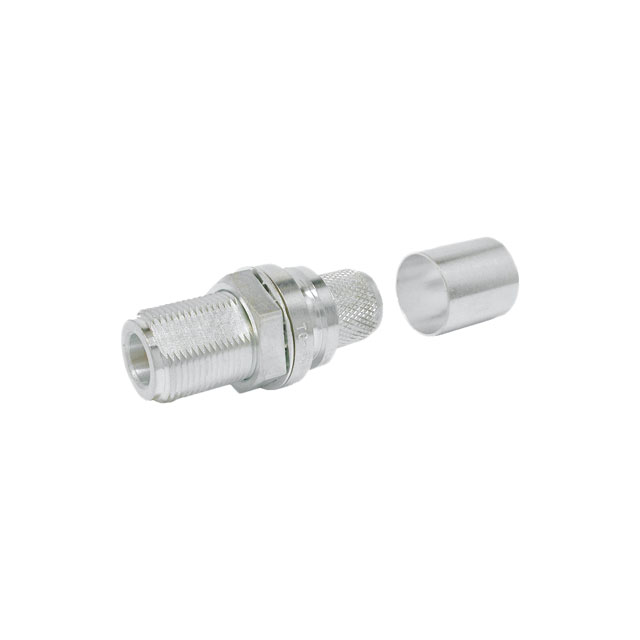

Image shown is a representation only
Manufacturer
Manufacturer No
TC-600-NF-BH
Packaging
Bag
Description
N-FEMALE (JACK) CRIMP BULKHEAD C
Detailed Description
N Type Connector Jack, Female Socket 50 Ohms Panel Mount Solder
DataSheet
Mfr
Amphenol Times Microwave Systems
Series
TC
Impedance
50 Ohms
Packaging
Bag
Body Finish
Silver
Cable Group
LMR-600
Part Status
Obsolete
Body Material
Brass
Housing Color
Silver
Mounting Type
Panel Mount
Connector Type
Jack, Female Socket
Fastening Type
Threaded
Voltage Rating
1000 V
Connector Style
N Type
Frequency - Max
2.5 GHz
Number of Ports
1
Mounting Feature
Bulkhead - Front Side Nut
Shield Termination
Crimp
Base Product Number
TC-600
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-40°C ~ 85°C
Center Contact Plating
Gold
Center Contact Material
Brass
| Attribute | Value |
|---|---|
| Mfr | Amphenol Times Microwave Systems |
| Series | TC |
| Impedance | 50 Ohms |
| Packaging | Bag |
| Body Finish | Silver |
| Cable Group | LMR-600 |
| Part Status | Obsolete |
| Body Material | Brass |
| Housing Color | Silver |
| Mounting Type | Panel Mount |
| Connector Type | Jack, Female Socket |
| Fastening Type | Threaded |
| Voltage Rating | 1000 V |
| Connector Style | N Type |
| Frequency - Max | 2.5 GHz |
| Number of Ports | 1 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Shield Termination | Crimp |
| Base Product Number | TC-600 |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -40°C ~ 85°C |
| Center Contact Plating | Gold |
| Center Contact Material | Brass |
